Description

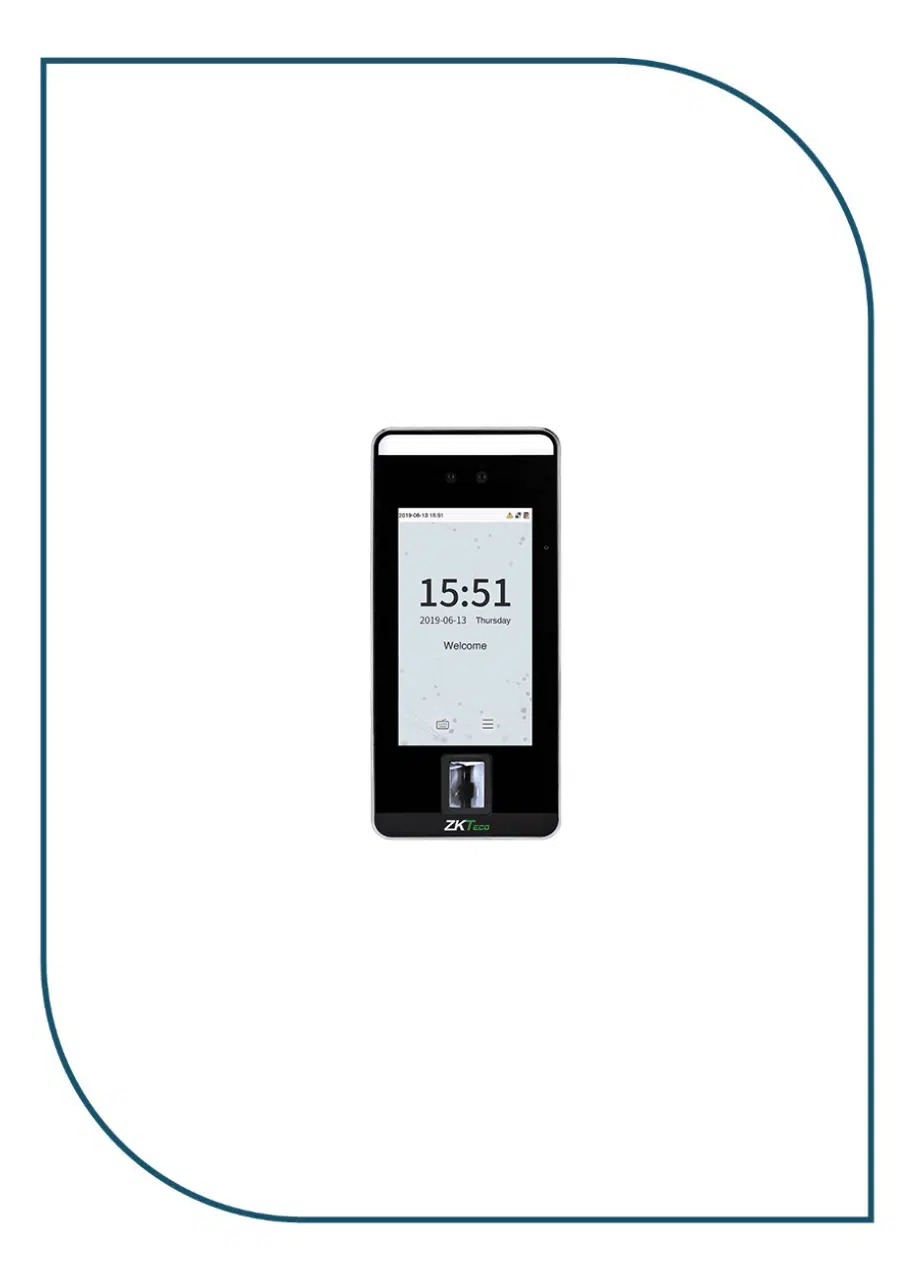

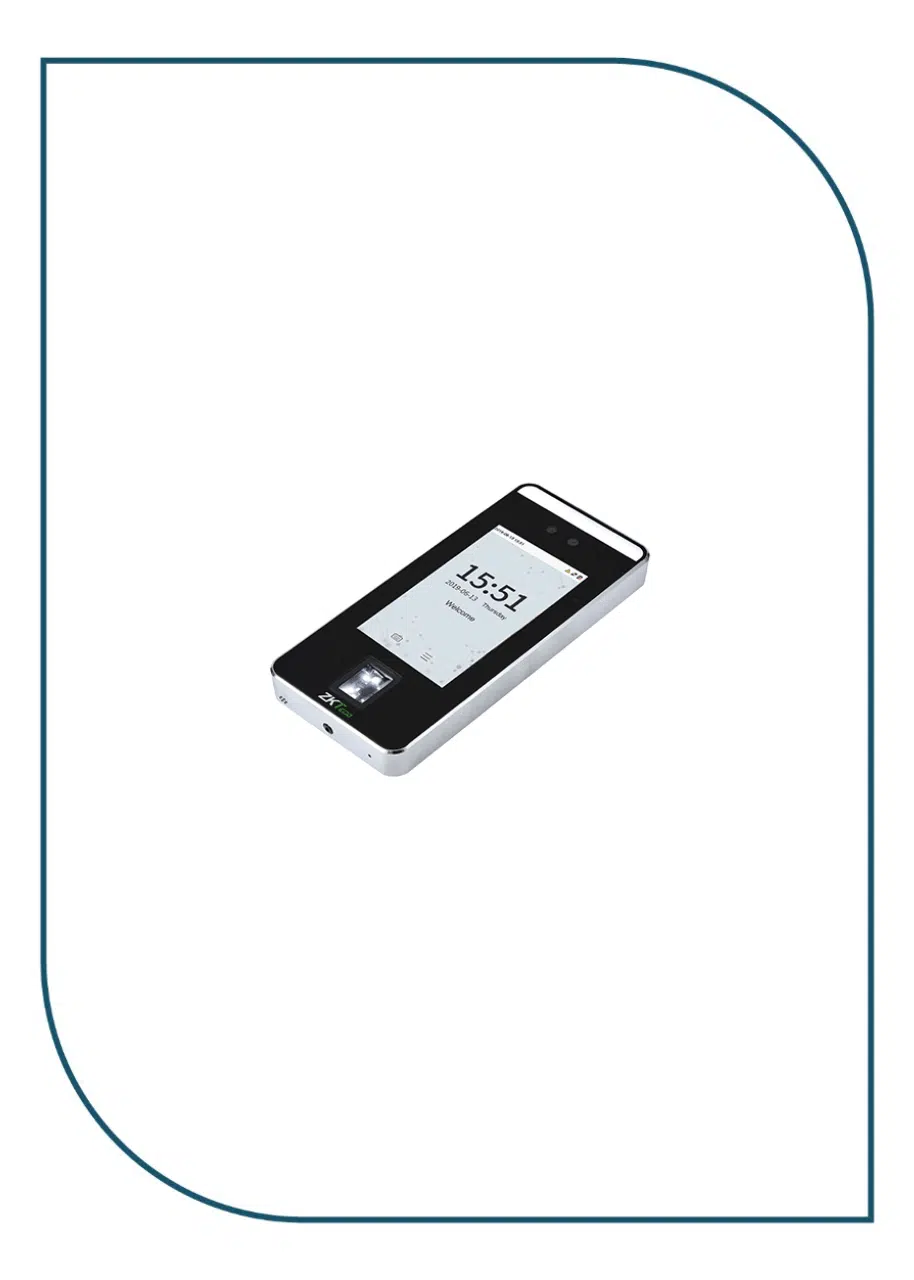

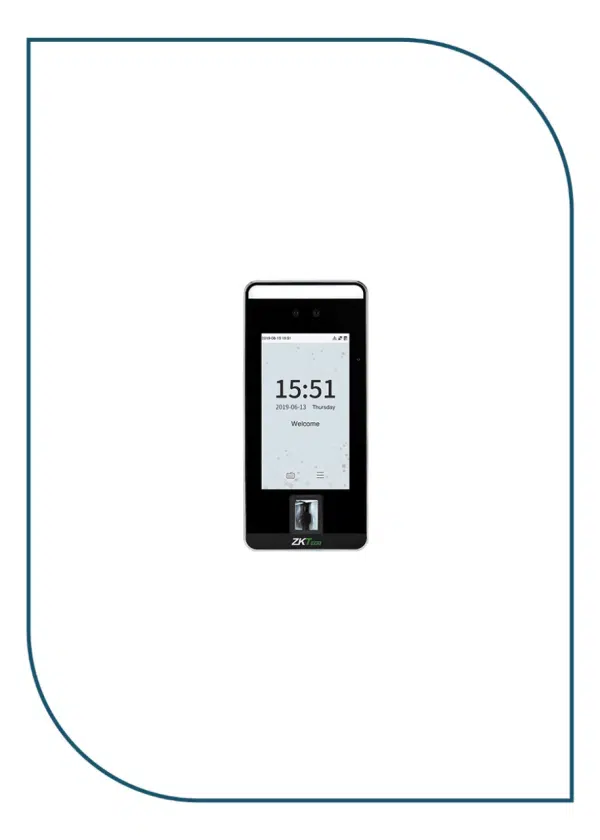

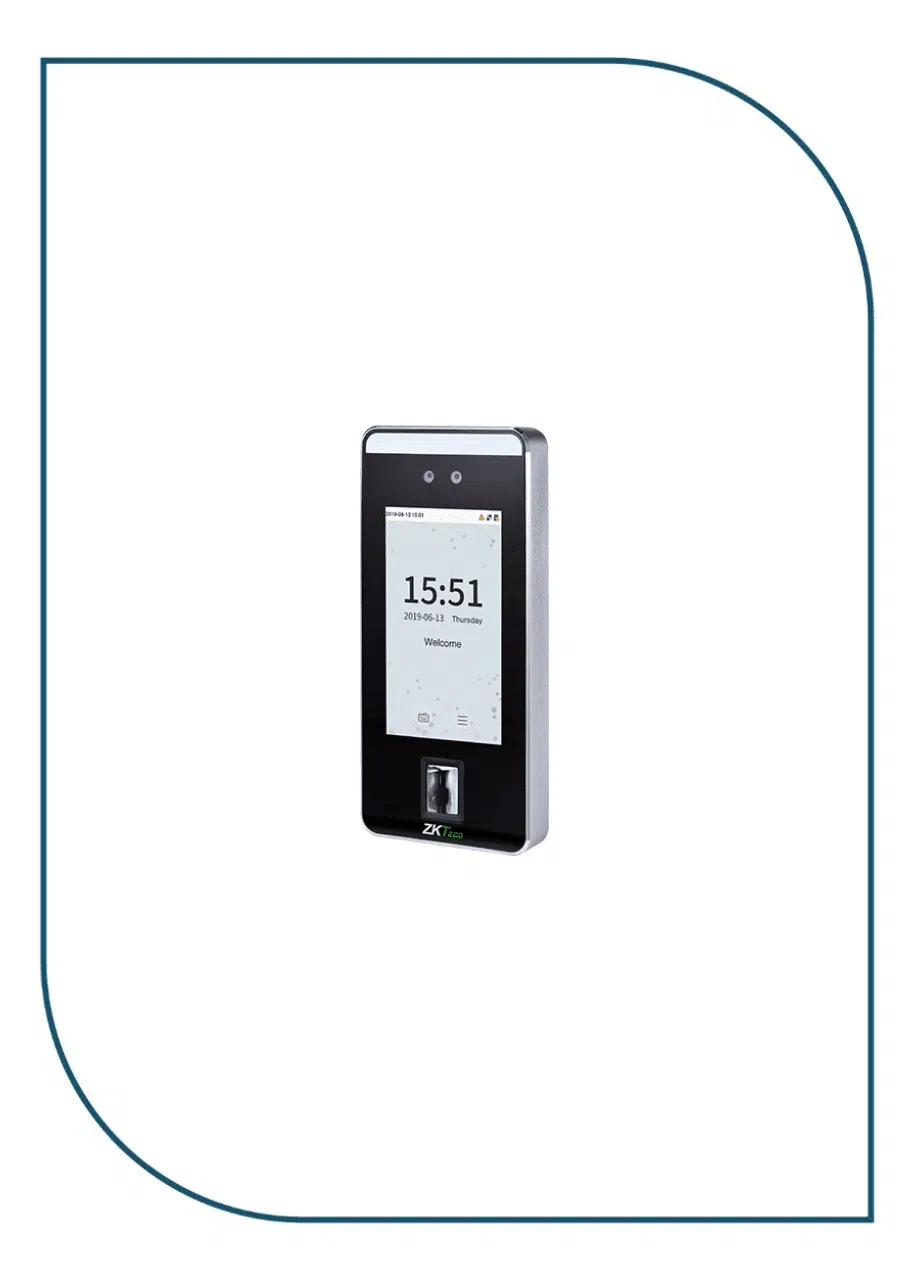

The ZKTeco SpeedFace-V5L is a next-generation multi-biometric access control and time attendance terminal that combines visible light facial recognition, fingerprint authentication, palm recognition (optional), RFID card, QR code, and password verification into a single intelligent security solution. Designed for offices, factories, schools, hospitals, government facilities, and commercial buildings, it provides fast, touchless, and highly secure identity verification.
Powered by advanced Visible Light Facial Recognition technology and AI-based anti-spoofing algorithms, the SpeedFace-V5L accurately detects fake photos, videos, and 3D mask attacks while recognizing users in less than one second. It also supports masked face recognition, enabling reliable authentication even when users are wearing face masks.
The terminal features a 5-inch touchscreen, a 2MP WDR low-light camera, and supports up to 6,000 face templates, 6,000 fingerprint templates, 3,000 palm templates (customized), 10,000 cards, and 200,000 transaction records. Palm verification combines Palm Shape, Palm Print, and Palm Vein recognition, completing authentication in as little as 0.35 seconds.
The SpeedFace-V5L integrates seamlessly with access control systems through TCP/IP, Wiegand, RS485, door lock interfaces, exit buttons, alarm outputs, and auxiliary inputs. It also supports ZKBio CVAccess, ZKBio Time, ZKBio Zlink, and cloud-based management for centralized monitoring and administration. Selected variants additionally support body temperature detection, QR code verification, optional Wi-Fi, video intercom, and SIP communication.
Specifications Table
| Specification | Details |
|---|---|
| Brand | ZKTeco |
| Model | SpeedFace-V5L |
| Product Type | Multi-Biometrics Access Control & Time Attendance Terminal |
| Display | 5-inch Touchscreen |
| Operating System | Linux |
| CPU | 1 GHz Dual-Core |
| Memory | 1 GB RAM, 8 GB Flash |
| Camera | 2 MP WDR Low-Light Camera |
| Verification Methods | Face, Fingerprint, Palm (Optional), RFID Card, QR Code, Password |
| Face Capacity | 6,000 (Standard), Optional 10,000 |
| Fingerprint Capacity | 6,000 (Standard), Optional 10,000 |
| Palm Capacity | 3,000 (Customized) |
| Card Capacity | Up to 10,000 |
| Transaction Capacity | 200,000 Records |
| Face Recognition Speed | < 1 Second |
| Fingerprint Recognition Speed | < 0.3 Second |
| Palm Recognition Speed | < 0.35 Second |
| Recognition Distance | Face: 1–100 cm, Palm: Up to 50 cm |
| Temperature Detection | Supported on Temperature Detection Models |
| Mask Detection | Yes |
| Communication | TCP/IP, Wiegand In/Out, RS485 |
| Optional Connectivity | Wi-Fi |
| Access Control Interfaces | Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell |
| Power Supply | DC 12V / 3A |
| Operating Temperature | -10°C to 45°C |
| Dimensions | 202.93 × 91.93 × 21.5 mm |
| Weight | 0.6 kg (Net) |
