Description
The Premium-Line 206242124 Category 6 F/UTP Installation Cable is a professional-grade structured cabling solution designed for high-performance network installations. Manufactured with 23 AWG solid bare copper conductors and an overall foil shield (F/UTP), it provides excellent protection against electromagnetic interference (EMI) while maintaining reliable Gigabit Ethernet performance.
The cable features a Low Smoke Zero Halogen (LSOH) jacket, making it ideal for indoor environments where reduced smoke and toxic emissions are required during fire incidents. With support for transmission frequencies up to 250 MHz, it is suitable for Gigabit Ethernet, VoIP, IP surveillance systems, and other enterprise networking applications.

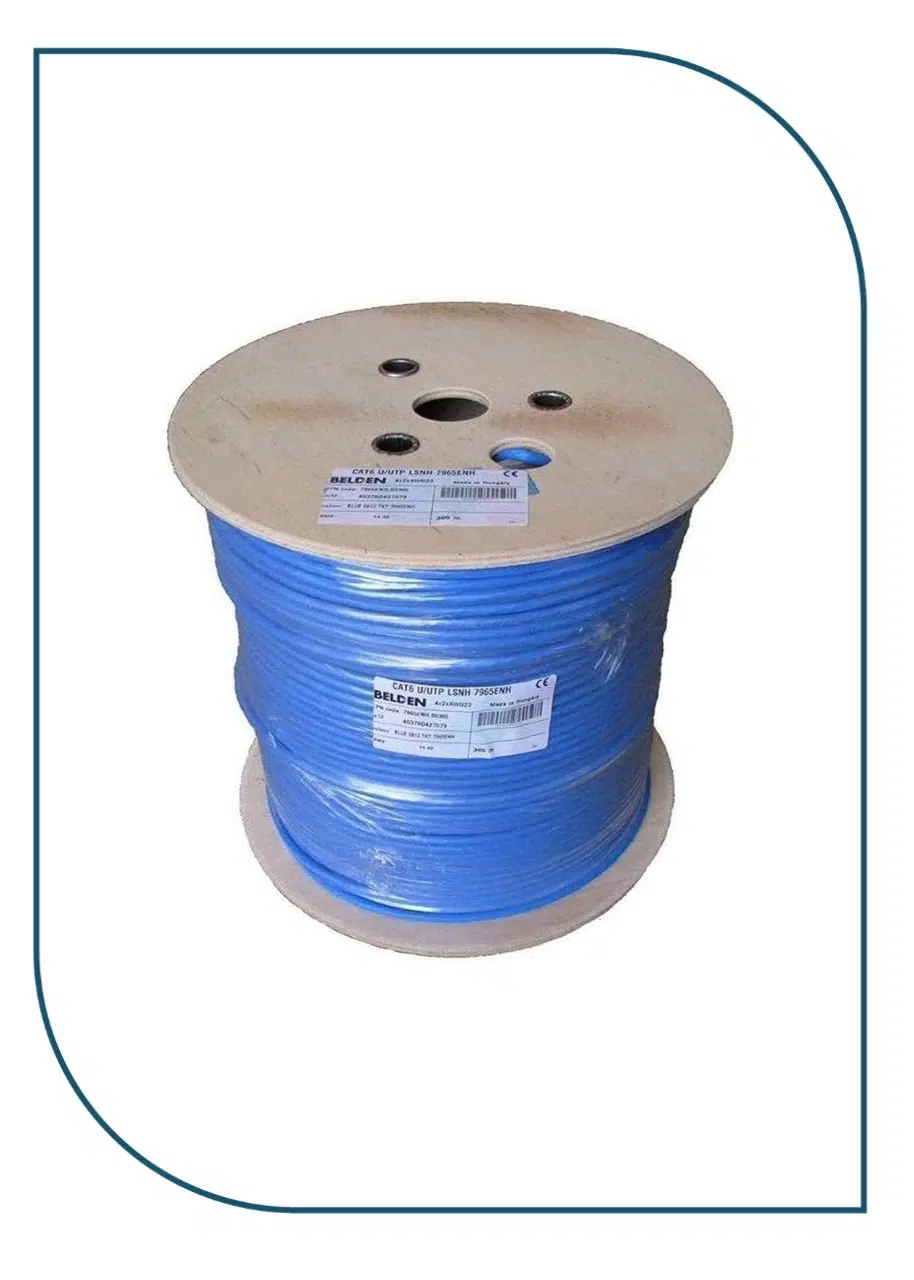

Supplied in a 305-meter reel, this installation cable is designed for structured cabling systems in offices, commercial buildings, educational institutions, healthcare facilities, and data centers. It complies with major international cabling standards, ensuring long-term performance and reliability.
| Specification | Details |
|---|---|
| Manufacturer | Premium-Line |
| Part Number | 206242124 |
| Product Type | Installation Cable |
| Cable Category | Category 6 (Cat6) |
| Cable Type | F/UTP (Overall Foil Shielded) |
| Conductor Material | Solid Bare Copper |
| Conductor Size | 23 AWG |
| Number of Pairs | 4 Twisted Pairs |
| Shielding | Overall Aluminum Foil Shield |
| Jacket Material | LSOH (Low Smoke Zero Halogen) |
| Jacket Color | Blue |
| Cable Length | 305 m (1000 ft) Reel |
| Bandwidth | Up to 250 MHz |
| Ethernet Support | 10BASE-T, 100BASE-TX, 1000BASE-T (Gigabit Ethernet) |
| Standards | ANSI/TIA-568.2-D, ISO/IEC 11801-1, EN 50173-1, EN 50288-5-1, IEC 60332-1-2, RoHS |
| Cable Diameter | 7.4 ± 0.4 mm |
| Operating Temperature | -20°C to +60°C |
| Installation Temperature | 0°C to +50°C |
| Minimum Bend Radius | ≥6× Cable Diameter (without load), ≥8× Cable Diameter (with load) |
| Applications | Structured Cabling, Enterprise LAN, Offices, Data Centers, CCTV, VoIP, Network Infrastructure |
