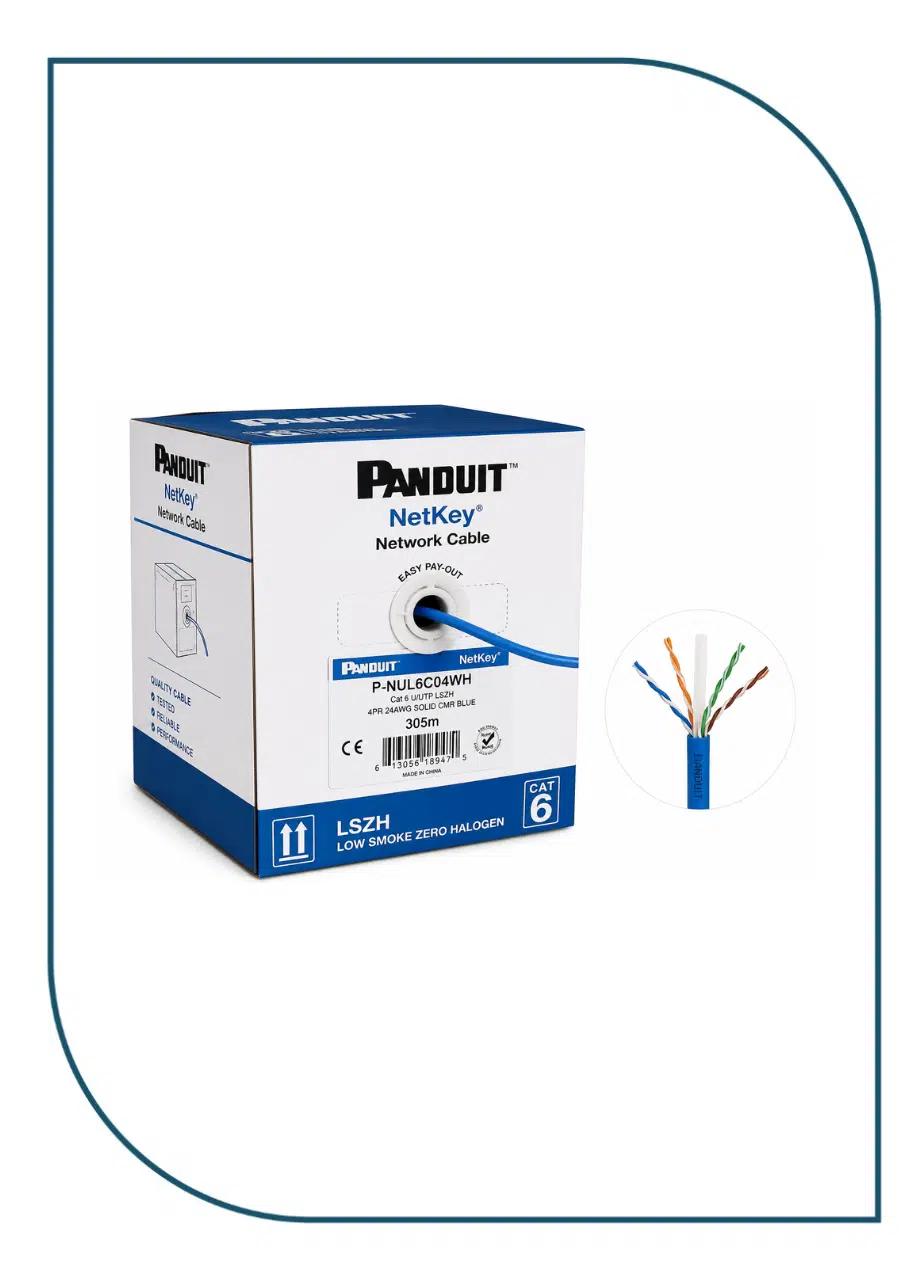

Panduit (P-NUL6C04WH) Cat 6, NetKey , LSZH Cable (305m), Blue Color
Panduit P-NUL6C04WH NetKey™ is a 305-meter Category 6 U/UTP copper cable featuring solid 24 AWG conductors, an LSZH jacket, and support for Gigabit Ethernet and PoE applications. Designed for structured cabling systems, enterprise LANs, and commercial network installations, it delivers reliable performance up to 250 MHz.
Description
The Panduit P-NUL6C04WH NetKey™ Category 6 Cable is a high-performance U/UTP copper cable designed for modern structured cabling systems and enterprise network infrastructures. Featuring four pairs of solid 24 AWG copper conductors, the cable delivers reliable transmission performance up to 250 MHz while supporting Gigabit Ethernet applications and Power over Ethernet (PoE) deployments.
Its Low Smoke Zero Halogen (LSZH) jacket helps reduce smoke and hazardous emissions during fire incidents, making it suitable for commercial buildings, healthcare facilities, educational institutions, offices, and data centers where enhanced safety standards are required. The cable is compliant with ANSI/TIA-568 and ISO/IEC 11801 Class E standards, ensuring dependable performance for voice, data, video, and IP-based communications.
Supplied in a convenient 305-meter easy pay-out box, the cable simplifies installation and reduces waste on large network deployment projects. It supports Gigabit Ethernet, IP telephony, wireless networking, surveillance systems, and PoE-powered devices, making it an ideal solution for professional structured cabling installations.
| Specification | Details |
|---|---|
| Model | P-NUL6C04WH |
| Brand | Panduit |
| Product Series | NetKey™ |
| Cable Category | Category 6 (Cat6) |
| Cable Type | U/UTP (Unshielded Twisted Pair) |
| Number of Pairs | 4 Pairs |
| Conductor Material | Solid Bare Copper |
| Conductor Size | 24 AWG |
| Cable Length | 305 Meters (1000 ft) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Cable Color | Blue |
| Insulation Material | HDPE (High-Density Polyethylene) |
| Bandwidth | Up to 250 MHz |
| Characteristic Impedance | 100 Ohms |
| Ethernet Support | 10BASE-T, 100BASE-TX, 1000BASE-T |
| PoE Support | IEEE 802.3af, 802.3at, 802.3bt |
| Standards Compliance | ANSI/TIA-568.2-E, ISO/IEC 11801 Class E |
| Flame Rating | IEC 60332-1, IEC 60754, IEC 61034 |
| Euroclass Rating | Dca-s2,d2,a1 |
| Installation Environment | Indoor |
| Packaging | Easy Pay-Out Box |
| Applications | Structured Cabling, LAN Networks, Data Centers, Enterprise Networks, VoIP, IP Cameras, Wireless Access Points |
