Description

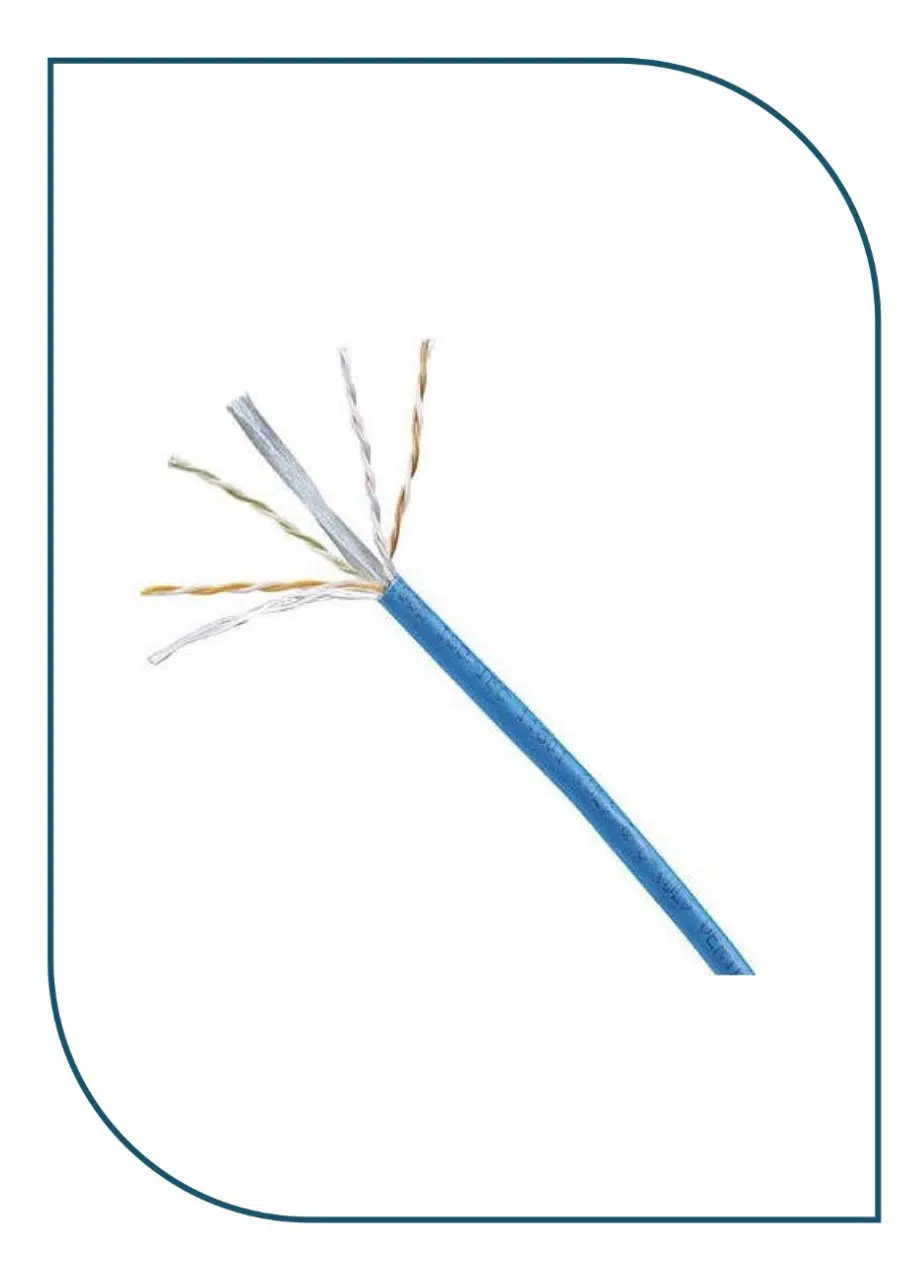

The Panduit NUZ6C04WH-KE is a premium Category 6 U/UTP copper cable engineered for high-performance structured cabling systems in commercial and enterprise environments. Constructed with four twisted pairs of solid 24 AWG bare copper conductors and an integrated cross separator, it delivers outstanding transmission performance up to 250 MHz while minimizing crosstalk for reliable Gigabit Ethernet connectivity.
The cable features a Low Smoke Zero Halogen (LSZH) white jacket with a Euroclass Dca-s2,d2,a1 fire rating, making it suitable for installations where enhanced fire safety and reduced smoke emissions are required. Its easy pay-out box simplifies installation and reduces cable waste during deployment.
Designed to meet international cabling standards, the NUZ6C04WH-KE supports Gigabit Ethernet, IP telephony, wireless access points, surveillance systems, and high-speed data networks. It is also fully compatible with IEEE 802.3af, 802.3at, and 802.3bt PoE applications, making it an excellent choice for powering modern network devices over Ethernet while maintaining exceptional network performance.
| Specification | Details |
|---|---|
| Model | NUZ6C04WH-KE |
| Brand | Panduit |
| Product Type | Bulk Copper Network Cable |
| Cable Category | Category 6 (Cat6) |
| Cable Construction | U/UTP (Unshielded Twisted Pair) |
| Number of Pairs | 4 Pairs |
| Conductor Material | Solid Bare Copper |
| Conductor Size | 24 AWG (0.51 mm) |
| Cable Length | 305 Meters (1000 ft) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Jacket Color | White |
| Insulation Material | HDPE |
| Separator | Integrated Cross Divider |
| Bandwidth | Up to 250 MHz |
| Ethernet Support | 10/100/1000BASE-T Gigabit Ethernet |
| PoE Support | IEEE 802.3af, 802.3at & 802.3bt Compatible |
| Euroclass Rating | Dca-s2,d2,a1 |
| Flame Rating | LSZH (IEC Compliant) |
| Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class E, IEC 61156 |

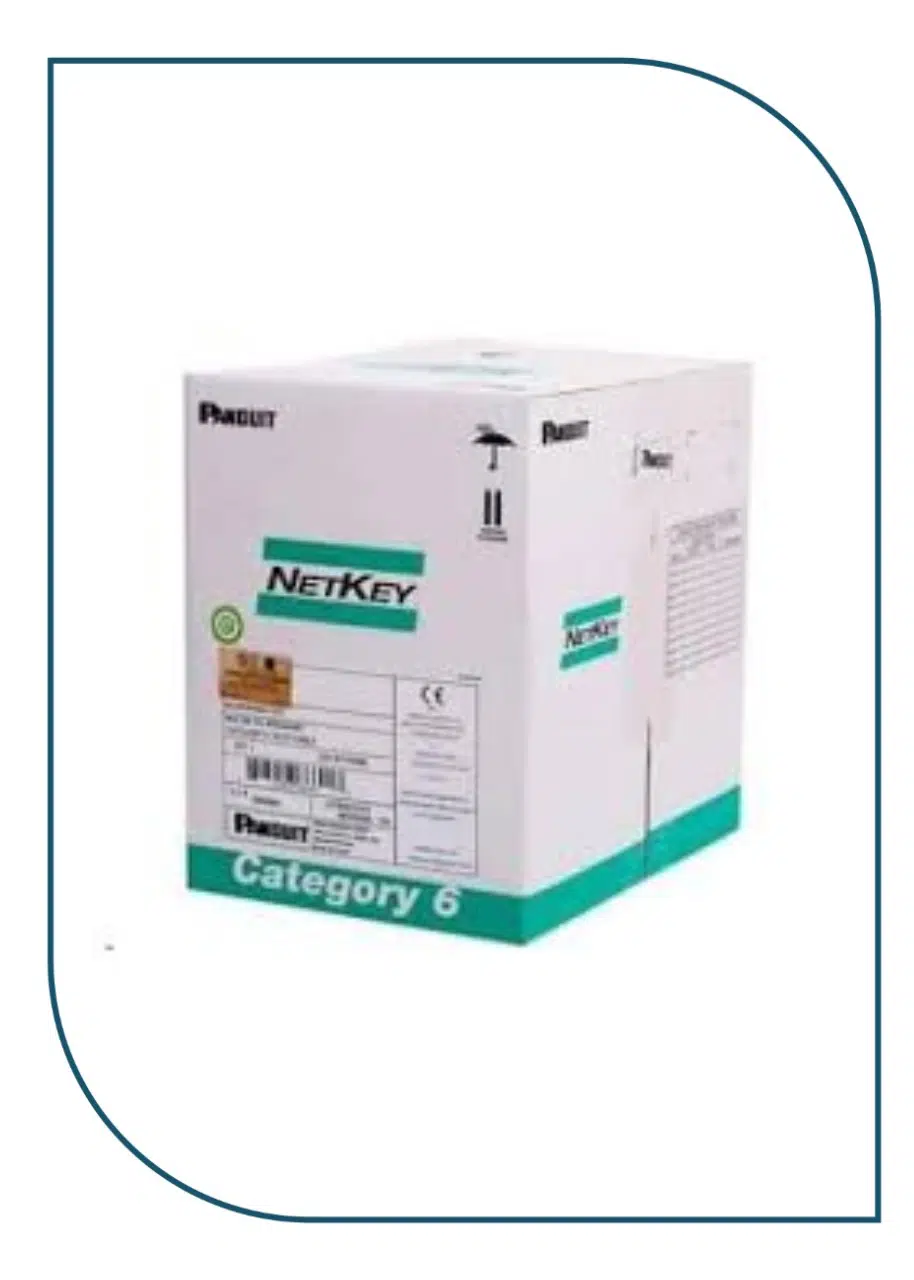

| Packaging | Easy Pay-Out Box |
| Installation | Indoor |
| Applications | Structured Cabling, LAN Networks, Offices, Enterprise Networks, Data Centers, Patch Panels |
