Description

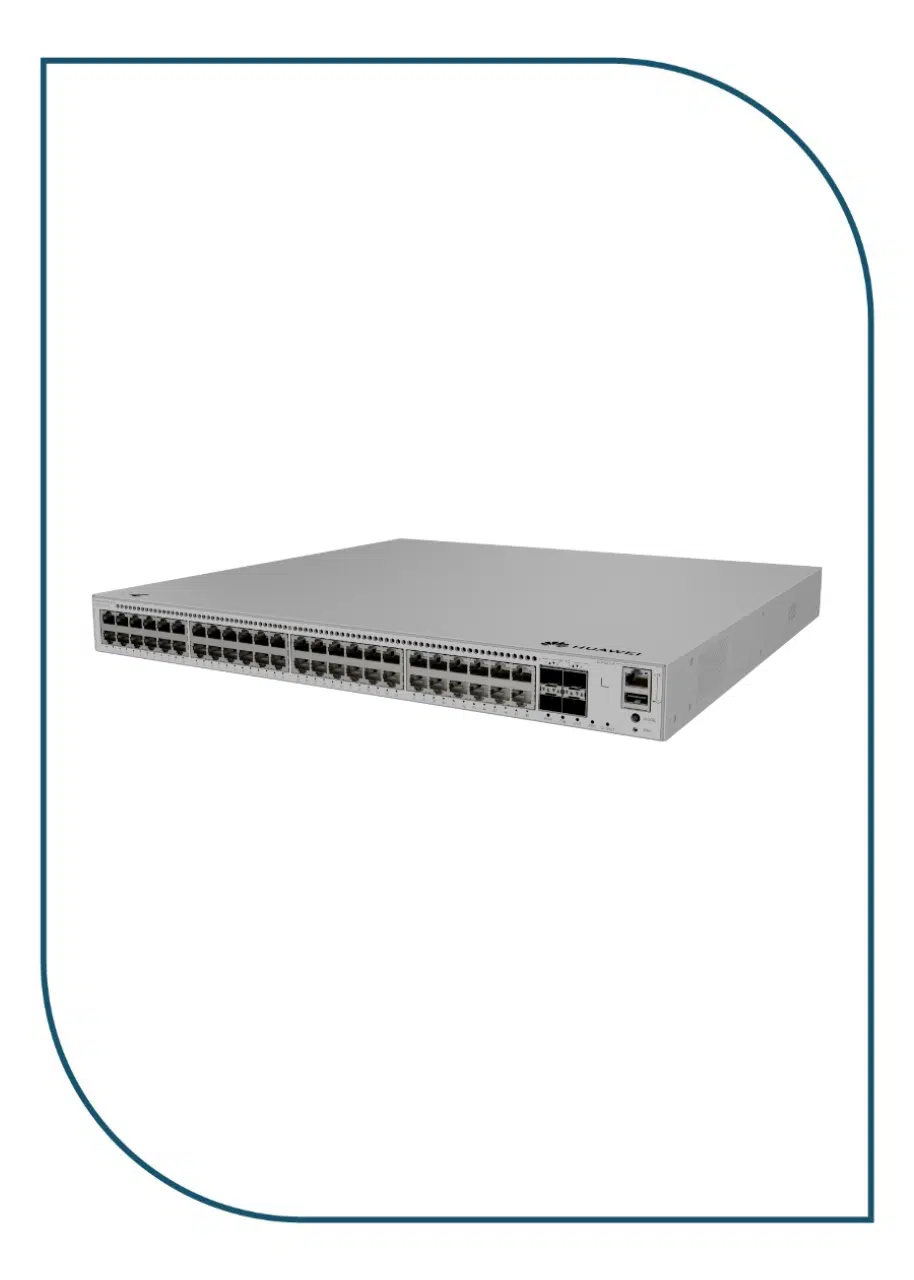

The Huawei eKit S310-48HP4X is a high-performance Layer 3 Smart Managed PoE+ Ethernet Switch designed for SMBs, enterprise offices, hotels, schools, retail stores, and surveillance networks. It features 48 Gigabit PoE+ ports with 4 × 10G SFP+ uplink ports, delivering high-speed connectivity for IP phones, wireless access points, IP cameras, and other PoE-enabled devices.
With an impressive 846W PoE power budget, advanced Layer 3 routing, intelligent management, VLAN support, QoS, ACL security, IPv6, and static routing, the switch provides reliable, scalable, and secure networking. It supports centralized management through the Huawei eKit platform, allowing quick deployment and simplified network maintenance.
The S310-48HP4X is built with enterprise-grade hardware, intelligent cooling, and energy-efficient operation, making it an ideal choice for growing business networks requiring high availability and dependable performance.
Specifications
| Feature | Specification |
|---|---|
| Model | Huawei eKit S310-48HP4X |
| Switch Type | Layer 3 Smart Managed Switch |
| Downlink Ports | 48 × 10/100/1000Base-T PoE+ RJ45 |
| Uplink Ports | 4 × 10GE SFP+ |
| PoE Standard | IEEE 802.3af / 802.3at (PoE+) |
| Total PoE Budget | 846 W |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 131 Mpps |
| MAC Address Table | 16K Entries |
| Layer Features | Layer 2 + Layer 3 Static Routing |
| VLAN | 4K VLANs |
| QoS | Supported |
| ACL | Supported |
| IPv6 | Supported |
| Link Aggregation | Supported |
| STP/RSTP/MSTP | Supported |
| Port Mirroring | Supported |
| IGMP Snooping | Supported |
| DHCP Features | DHCP Snooping, Relay |
| Management | Web GUI, CLI, SNMP, Huawei eKit App |
| Cooling | Intelligent Fan Control |
| Power Supply | Built-in AC |
| Input Voltage | 100–240V AC |
| Maximum Power Consumption | 991.74W (Full PoE Load) |
| Dimensions | 43.6 × 442 × 220 mm |
| Rack Mount | 1U |
| Operating Temperature | -5°C to +50°C |
| Humidity | 5%–95% RH (Non-condensing) |
