Description

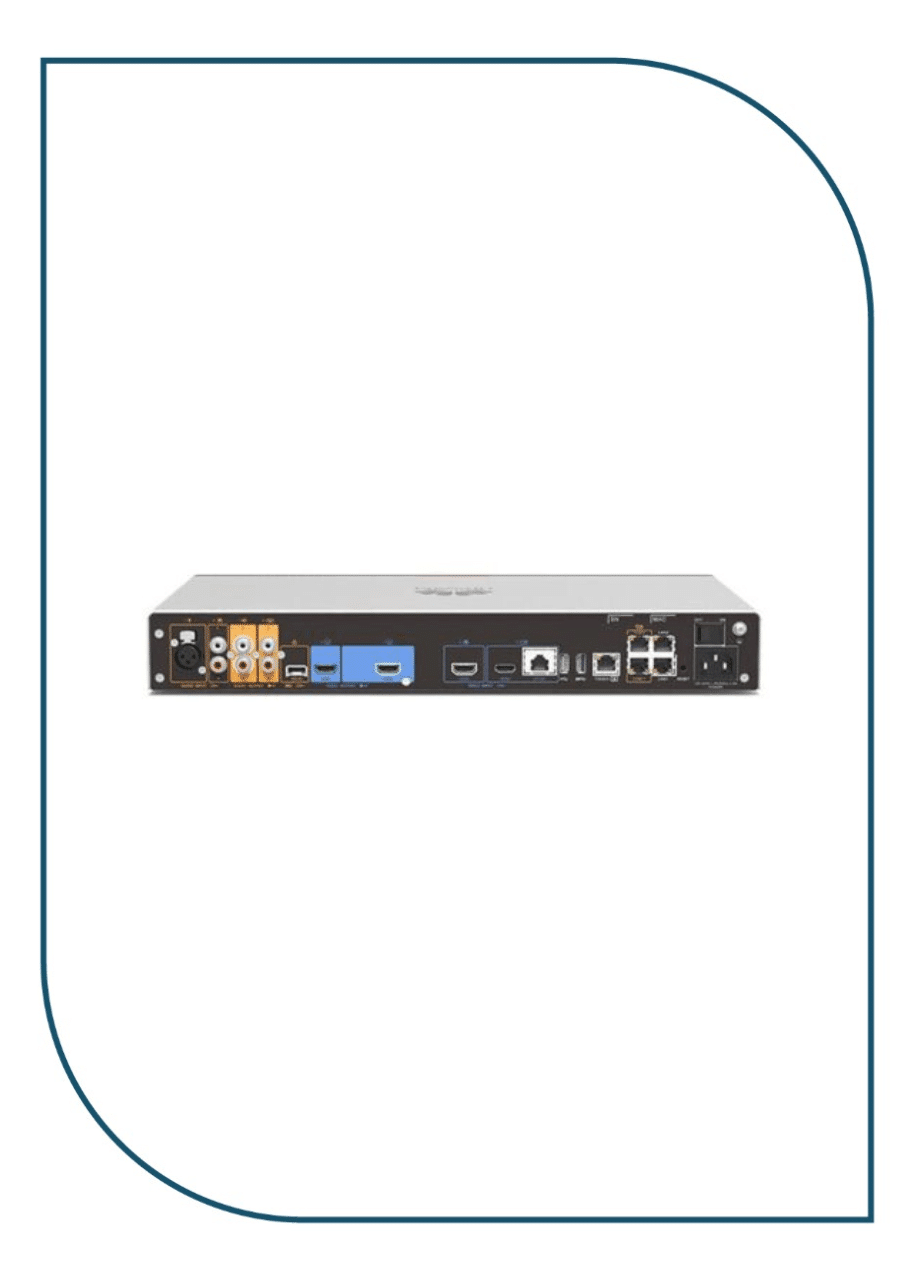

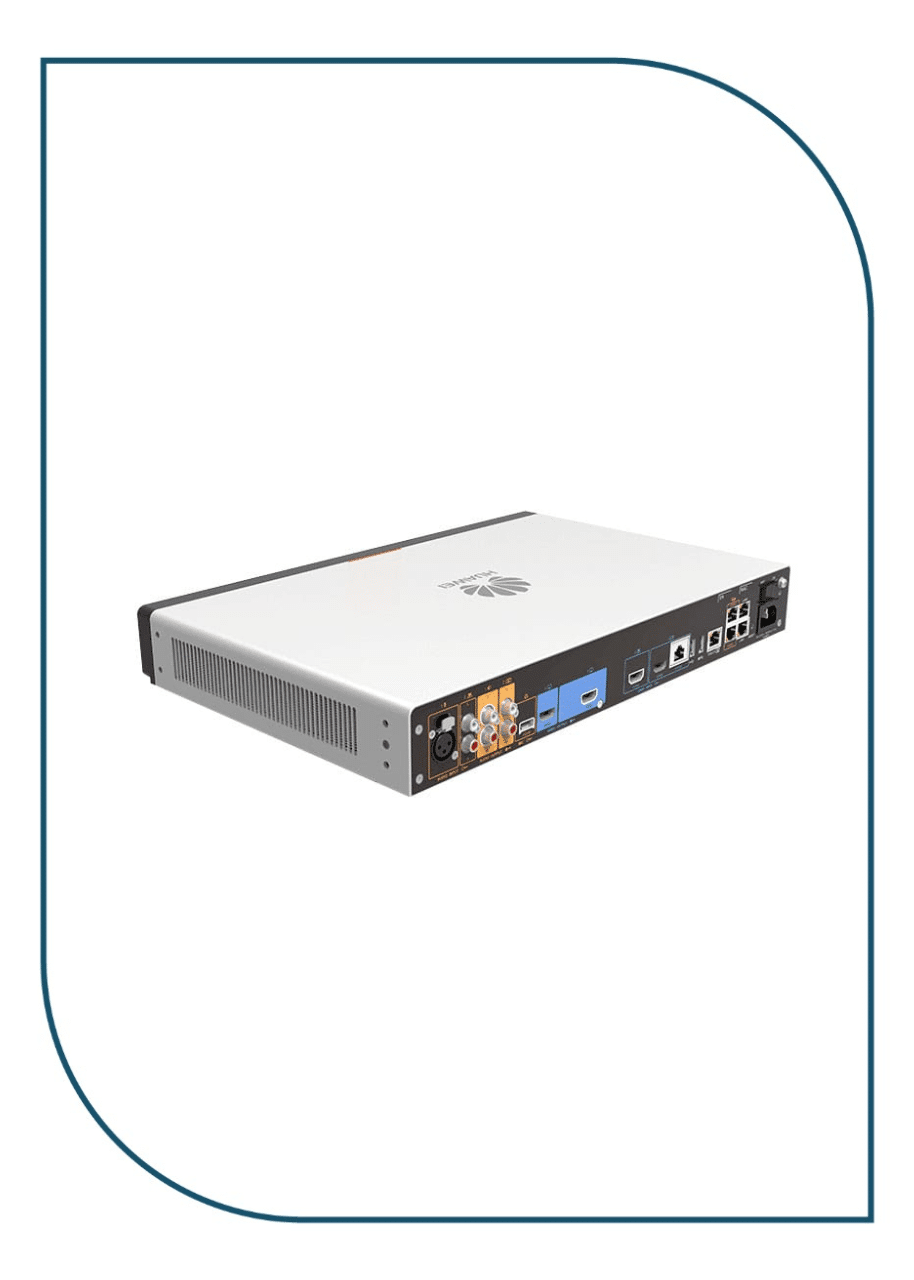

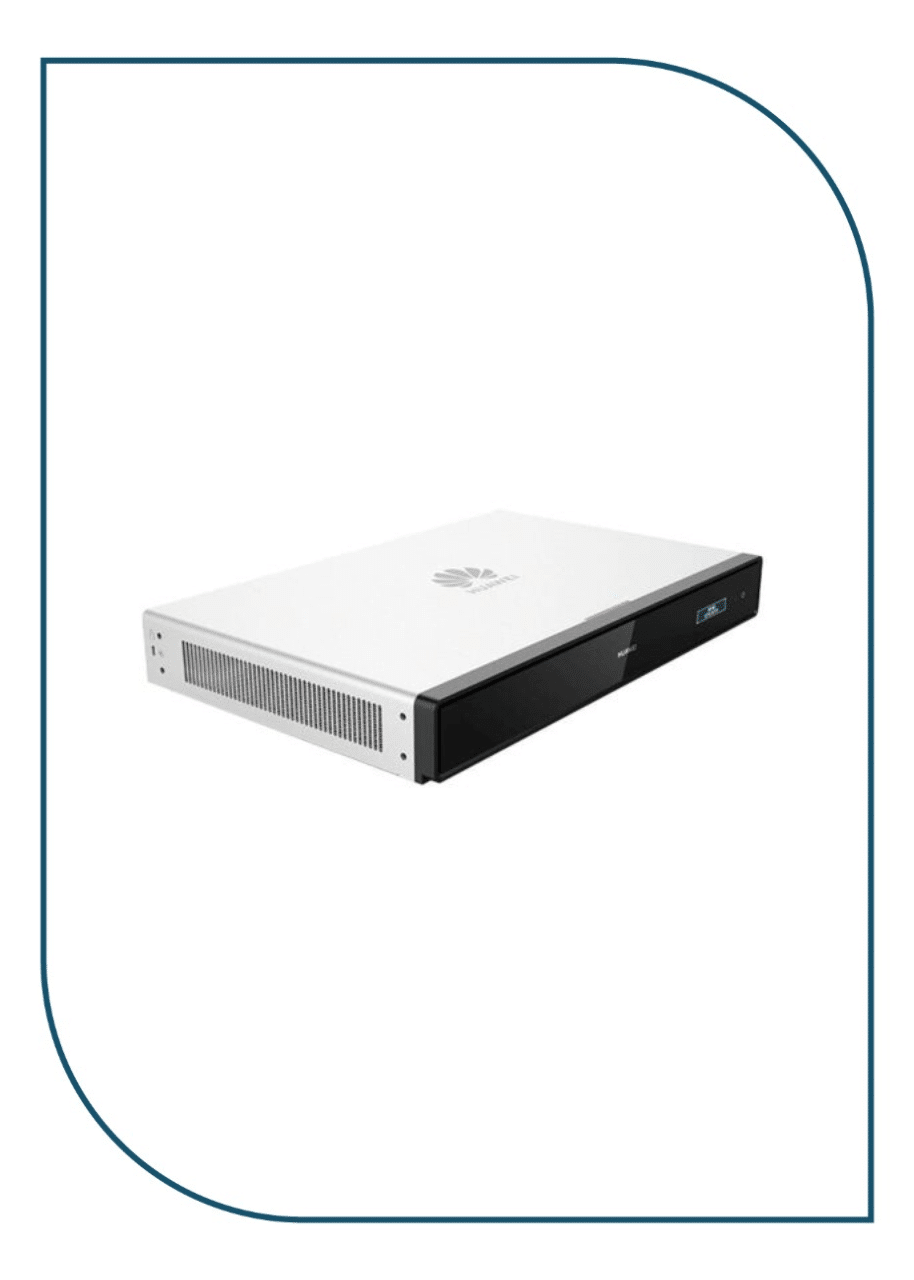

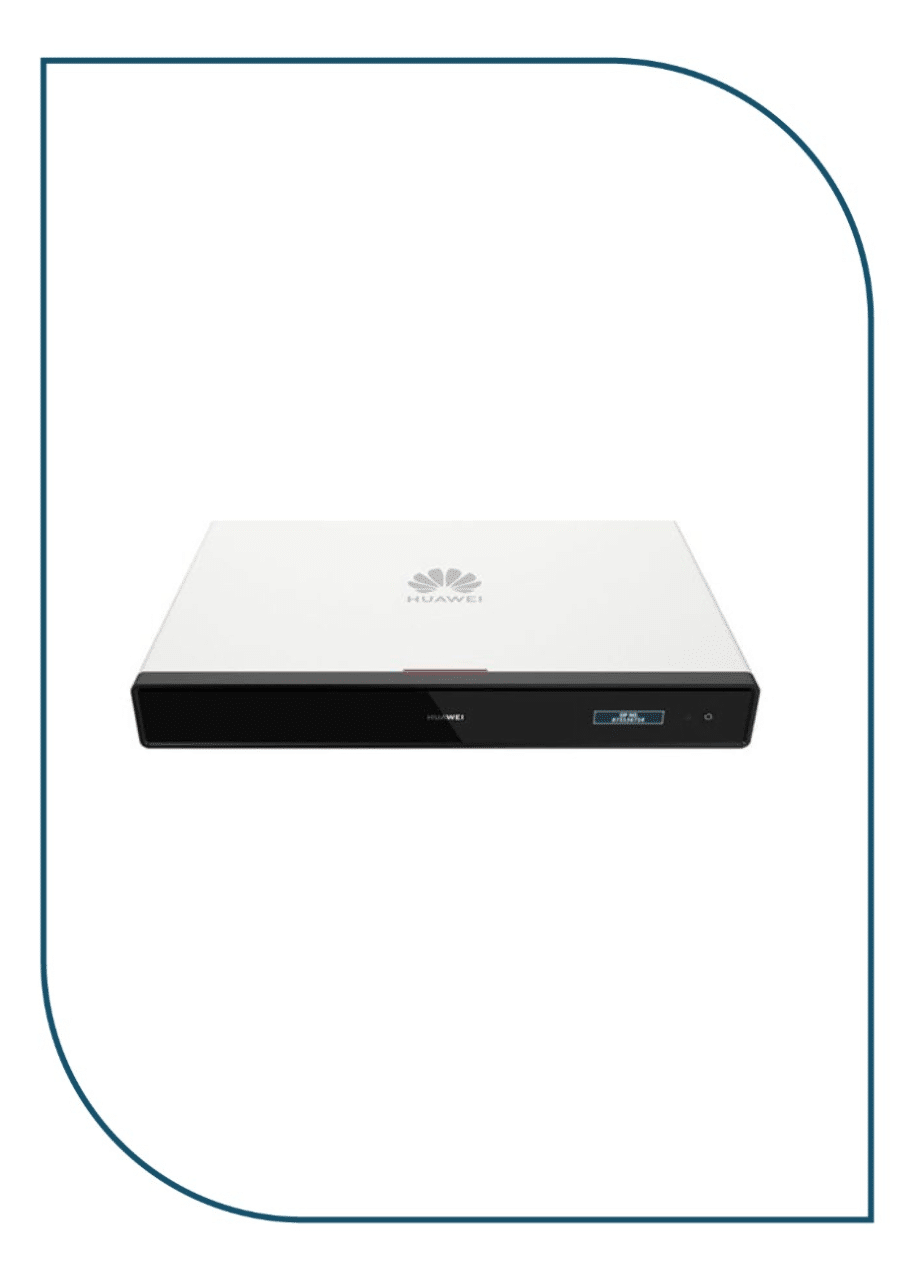

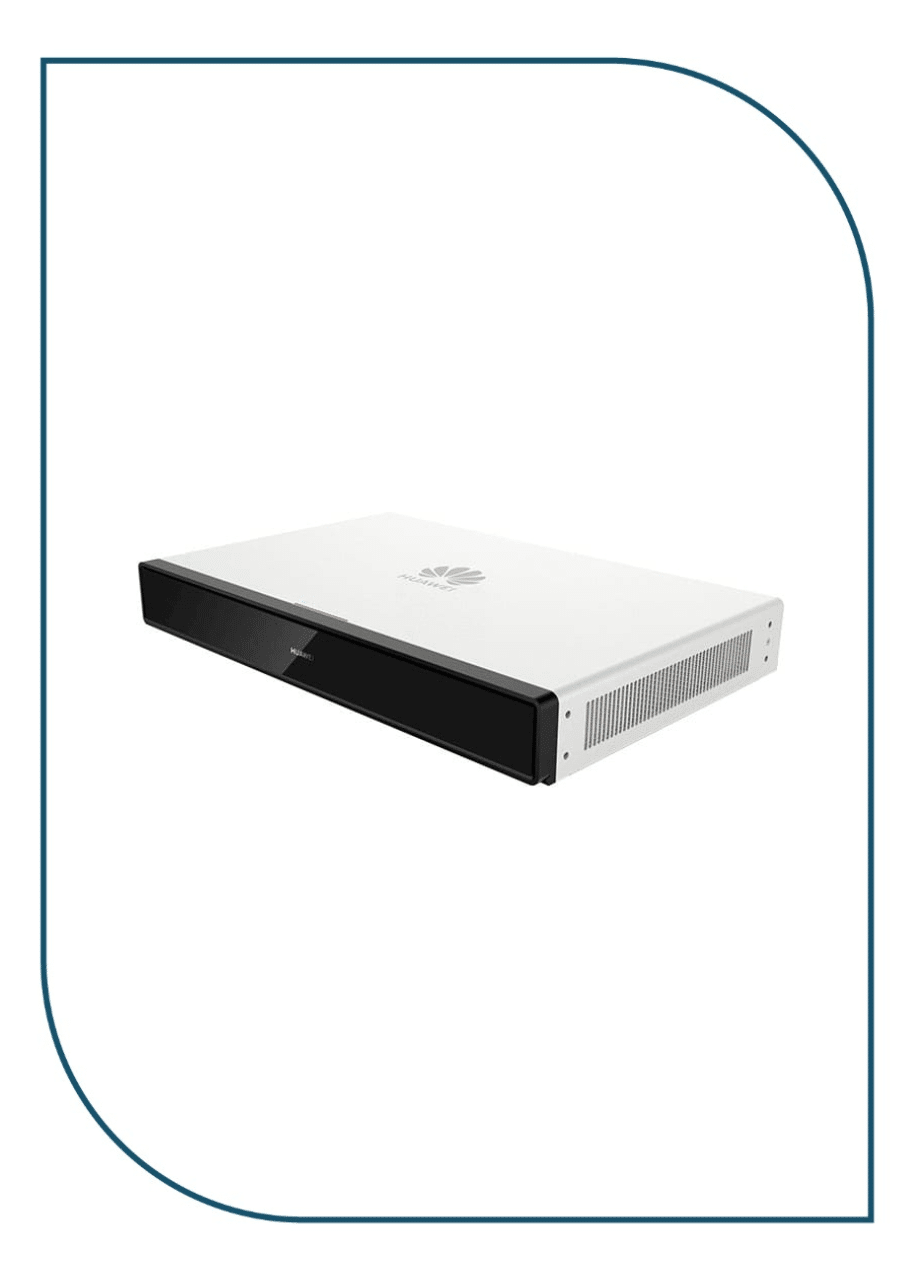

Huawei CloudLink Box 310
HUAWEI CloudLink Box 310
HUAWEI CloudLink Box 310 is next-gen ultra-HD video conferencing endpoint built on Huawei’s proprietary core technologies and high-computing hardware platform architecture. The Box 310 is equipped with H.265 4K dual-stream audio and video media processing capabilities and extensive audiovisual ports. It is compatible with a variety of cameras and display devices for meeting rooms of all sizes.
-
- Security and Reliability
- Huawei’s proprietary core technologies and high-computing hardware platform architecture for powerful performance
- One certificate for one endpoint, preventing device hijacking and spoofing
- End-to-end encryption and media and signaling encryption measures, such as H.235 and SRTP/TLS, ensuring meeting information security
- Professional-Grade Ultra-HD
- 4K ultra-HD video with breathtaking colors for an immersive meeting experience
- H.265 hardware codec and Huawei-proprietary VME technology, effectively removing noise in motion images and improving video quality
- Powerful network adaptability and 30% video packet loss concealment
- Flexible Adaptation
- Mainstream audio and video ports, which can be connected to the microphone array, loudspeaker, projector, and LCD/LED large-screen display device
- All-in-one HT-RX port integrates video transmission, camera control, and power supply with up to 100-meter long-distance connection
- Security and Reliability
Specifications :
| Model | Box 310 |
| Multimedia frame protocols | ITU-T H.323, IETF SIP |
| Video codec protocols | H.265, H.265 SVC, H.264 HP, H.264 BP, H.264 SVC, H.263, H.263+ |
| Video Features | Video Resolution： |
| 4K30, 1080P60, 1080P30, 720P60, 720P30 | |
| Dual-stream Resolution： | |
| 4K30 + 4K30 | |
| 1080P60 + 1080P60 | |
| 1080P30 + 1080P30 | |
| Video Input | 1 x HT-RX |
| 2 x HDMI | |
| Video Output | 2 × HDMI |
| Audio Input | 1 × HD-AI（level 2） |
| 1 × XLR connector | |
| 2 × HDMI（audio input） | |
| 2 × RCA | |
| Audio Output | 4 × RCA |
| 1 × HDMI（audio output） | |
| Other Ports | 1 × USB 2.0 Type-A |
| 1 × USB 3.0 Type-A | |
| 2 × 10/100/1000M LAN | |
| 1 × PoE network port （Touch） | |
| 2 × RJ45 serial port | |
| 1 × WIFI（built-in） |
