Description
GWN7624
key features :
- 2.03 Gbps wireless throughput and 4 Gigabit wireline ports 5GHz 4×4:4 MU-MIMO
- Supports up to 200 concurrent Wi-Fi client devices
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Self-power adaptation upon auto detection of PoE or PoE+
- Embedded controller can manage up to 30 local GWN series APs;
- GDMS Networking offers unlimited AP management; GWN Manager offers premise-based software controller
Specs :
| Item | Details |
|---|---|
| Client Devices | 200+ devices |
| 2.4GHz Throughput | 300 Mbps (2×2:2 MIMO) |
| 5GHz Throughput | 1733 Mbps (4×4:4 MU-MIMO) |
| 6GHz Throughput | N/A |
| Range | Up to 175 meters |

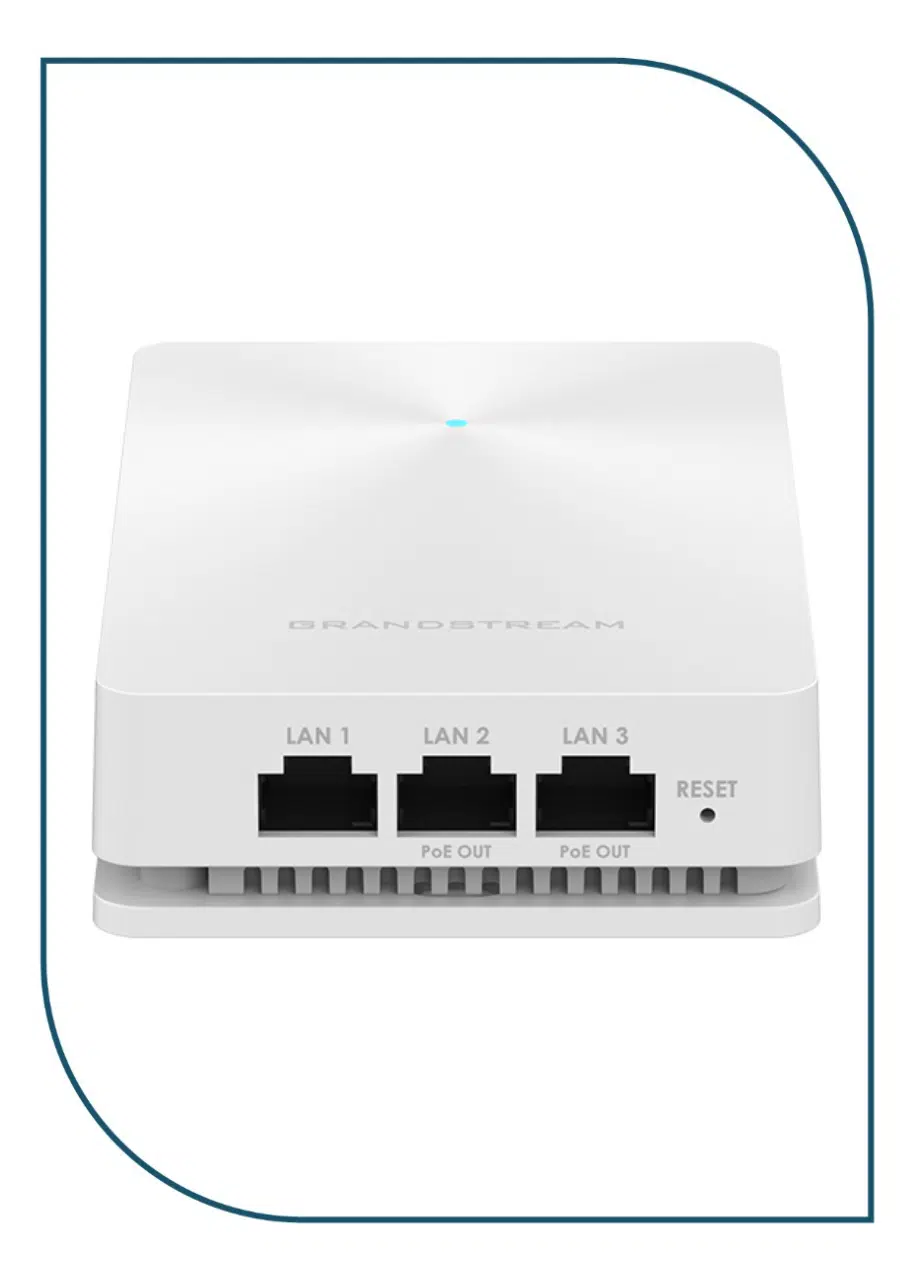

| Network Interfaces | 1 × 10/100/1000M uplink Ethernet port (PoE/PoE+)2 × 10/100/1000M Ethernet ports with PSE1 × 10/100/1000M Ethernet port |
| PoE Support | IEEE 802.3az, PoE 802.3af / 802.3atPSE max output per port: 6W |
| Maximum Power Consumption | 25W |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac |
| SSIDs | 16 SSIDs total (8 per radio – 2.4GHz & 5GHz) |
| Antennas | 2 × 5GHz + 2 × dual-frequency internal antennas |
| Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, secure boot, digital signatures, unique security certificate, random default password |
| Dimensions | 135 × 86 × 38.5 mm |

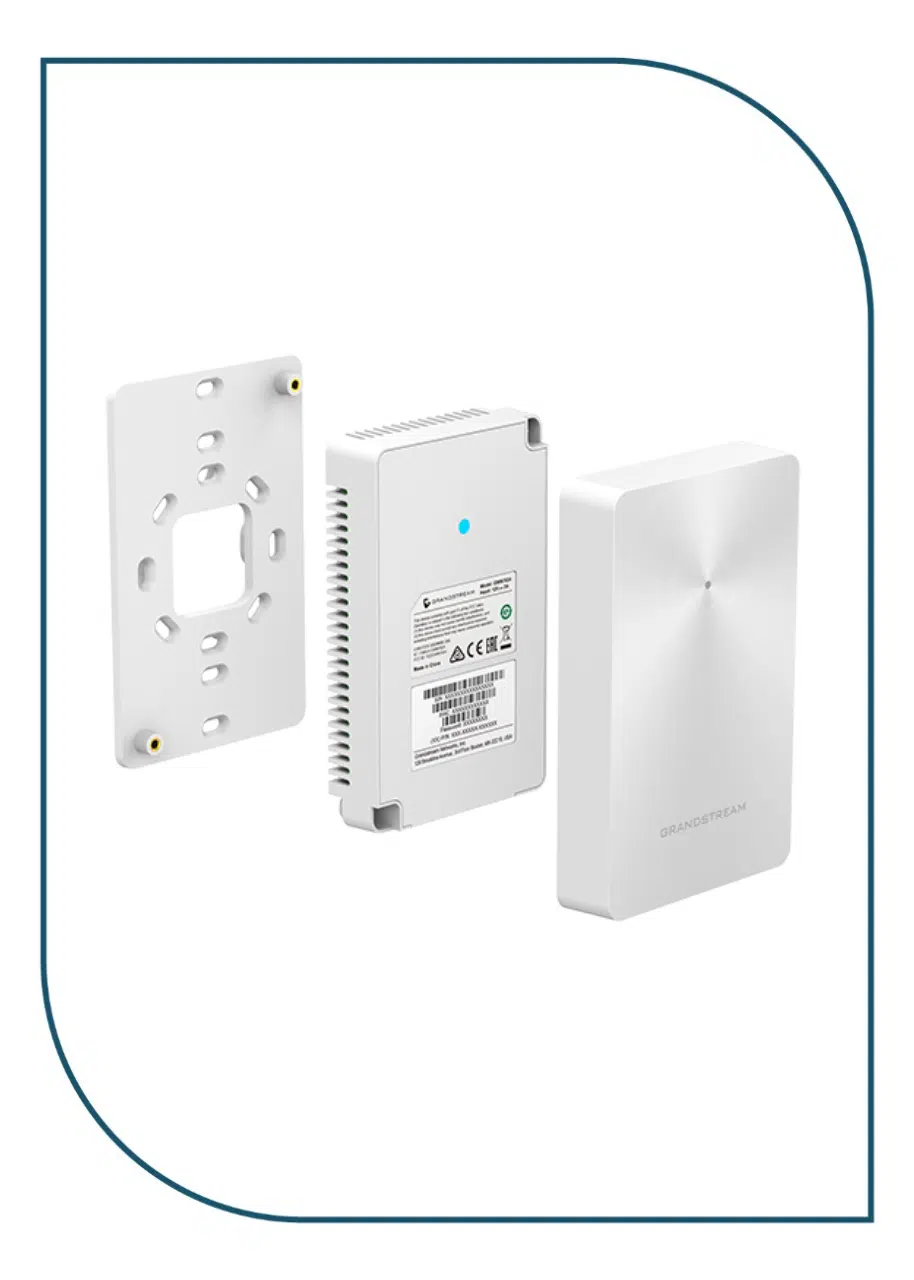

| Mounting Options | Wall mountable |
