Description

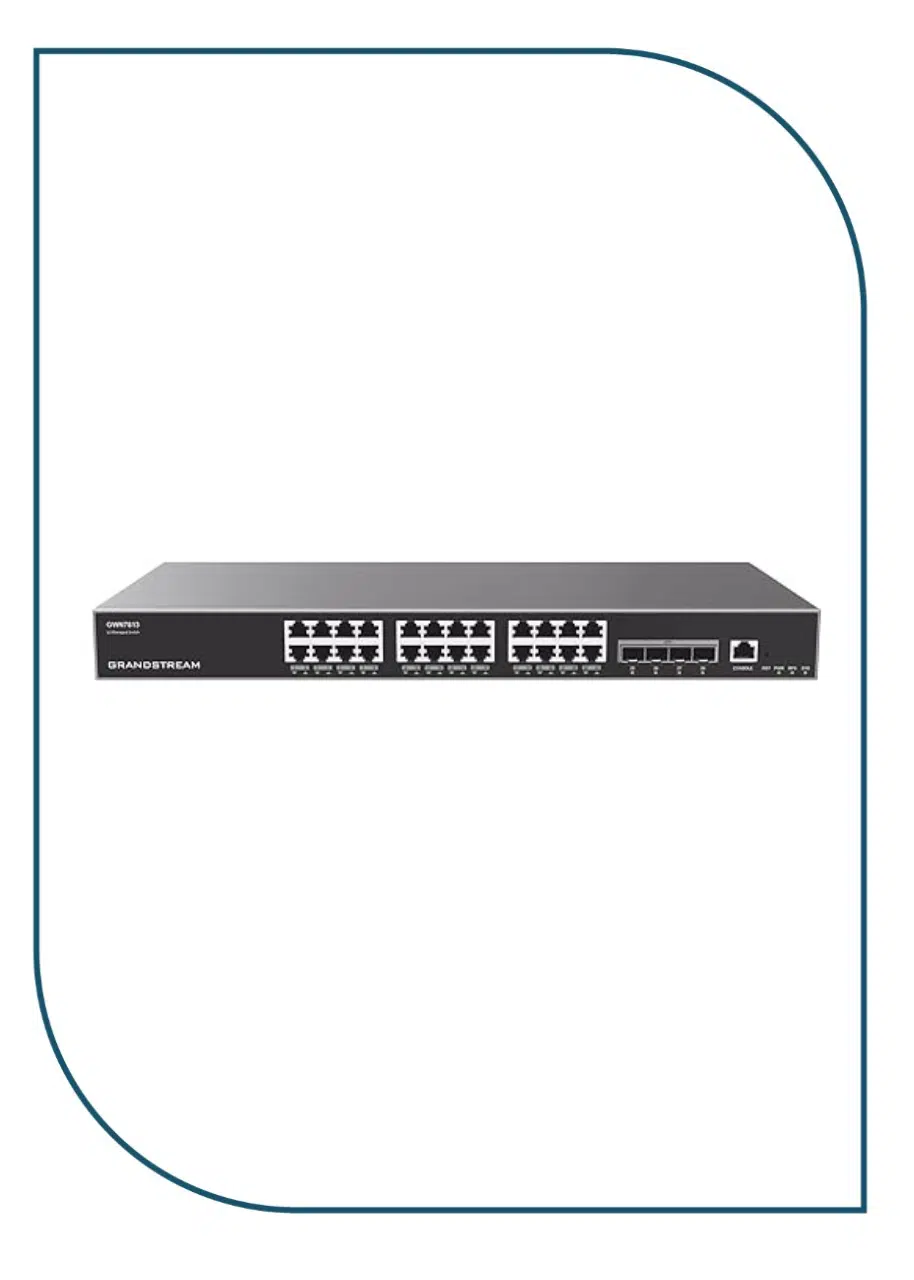

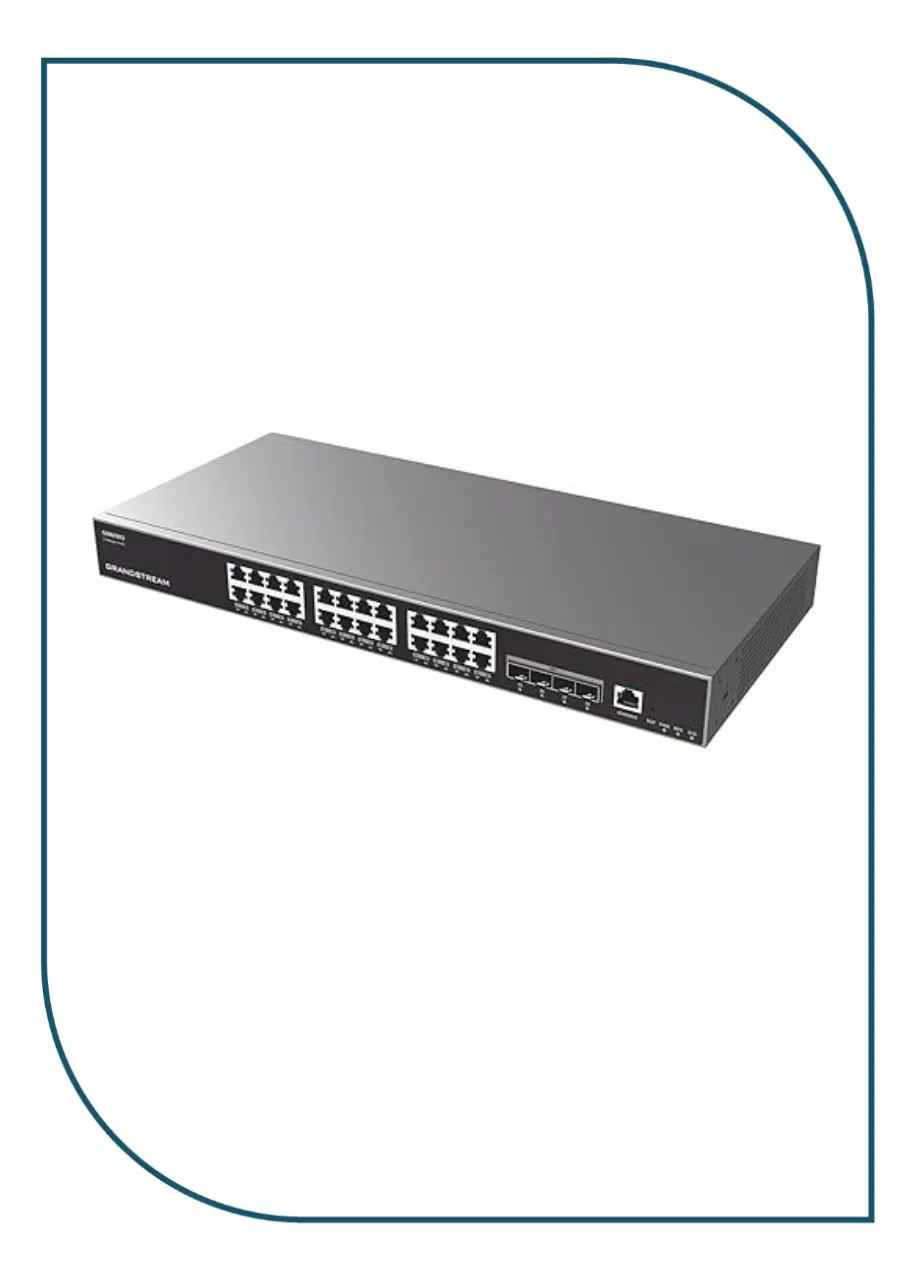

The Grandstream GWN7813 is an Enterprise Layer 3 Managed Network Switch designed for medium to large business networks, data centers, campuses, hotels, and enterprise environments. It features 24 Gigabit Ethernet ports and 4 × 10 Gigabit SFP+ uplink ports, delivering high-speed connectivity and a powerful backbone for demanding network applications. The switch supports advanced Layer 3 routing, comprehensive security features, and centralized management, making it ideal for scalable enterprise deployments.
The GWN7813 supports IPv4/IPv6 static and dynamic routing, including RIP, RIPng, OSPF, OSPFv3, and BGP, enabling efficient traffic routing across multiple VLANs and network segments. Advanced Layer 2 features such as STP/RSTP/MSTP, Link Aggregation (LACP), QinQ, Private VLAN, IGMP Snooping, MLD Snooping, and Voice VLAN ensure reliable, optimized network performance.
For enterprise-grade security, the switch includes 802.1X authentication, RADIUS/TACACS+, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, Storm Control, ACLs, SSH/HTTPS management, and DoS protection. It can be managed locally through a web interface, CLI, or SNMP, and centrally using Grandstream GWN Manager or GDMS Networking for simplified administration across multiple devices.
Built with a 128 Gbps switching capacity, 95.23 Mpps forwarding rate, and support for up to 16K MAC addresses, the GWN7813 delivers high-performance switching with low latency. Its rack-mountable 1U design, internal power supply, and optional redundant power supply (RPS) support make it suitable for mission-critical business environments.
Specifications
| Feature | Specification |
|---|---|
| Model | GWN7813 |
| Brand | Grandstream |
| Product Type | Enterprise Layer 3 Managed Switch |
| Gigabit Ethernet Ports | 24 × 10/100/1000 Mbps RJ45 |
| Uplink Ports | 4 × 10 Gigabit SFP+ |
| Console Port | 1 × RJ45 Console |
| Layer | Layer 3 |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.232 Mpps |
| Non-blocking Throughput | 64 Gbps |
| MAC Address Table | 16K Entries |
| Packet Buffer | 12 MB |
| Jumbo Frames | Up to 12,288 Bytes |
| RAM | 256 MB |
| Flash Memory | 128 MB |
| VLAN Support | 4K VLANs, 802.1Q, Private VLAN, Voice VLAN, QinQ |
| Routing Protocols | Static Routing, RIP, RIPng, OSPF, OSPFv3, BGP |
| Link Aggregation | LACP (32 Groups) |
| Spanning Tree | STP, RSTP, MSTP |
| QoS | Yes |
| ACL | IPv4 / IPv6 ACL |
| Multicast | IGMP Snooping v2/v3, MLD Snooping |
| Security | 802.1X, RADIUS, TACACS+, DHCP Snooping, ARP Inspection, IP Source Guard, SSH, HTTPS |
| Management | Web GUI, CLI, SNMP v1/v2c/v3, GWN Manager, GDMS |
| Power Supply | Internal AC Power |
| Redundant Power | Optional External RPS |
| Rack Mount | 1U Rack Mount |
| Dimensions | 440 × 300 × 44 mm |
| Weight | 2.94 kg |
