Description

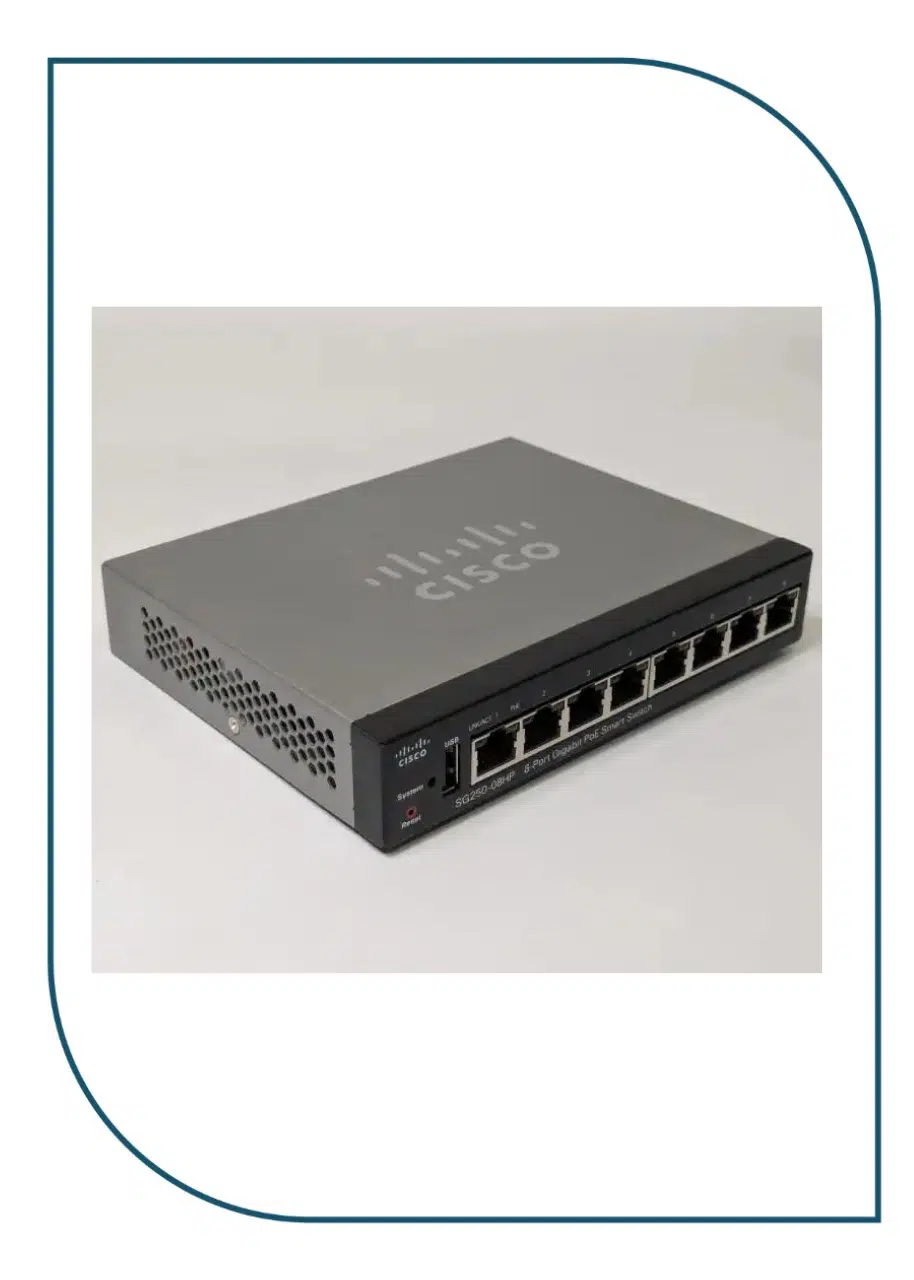

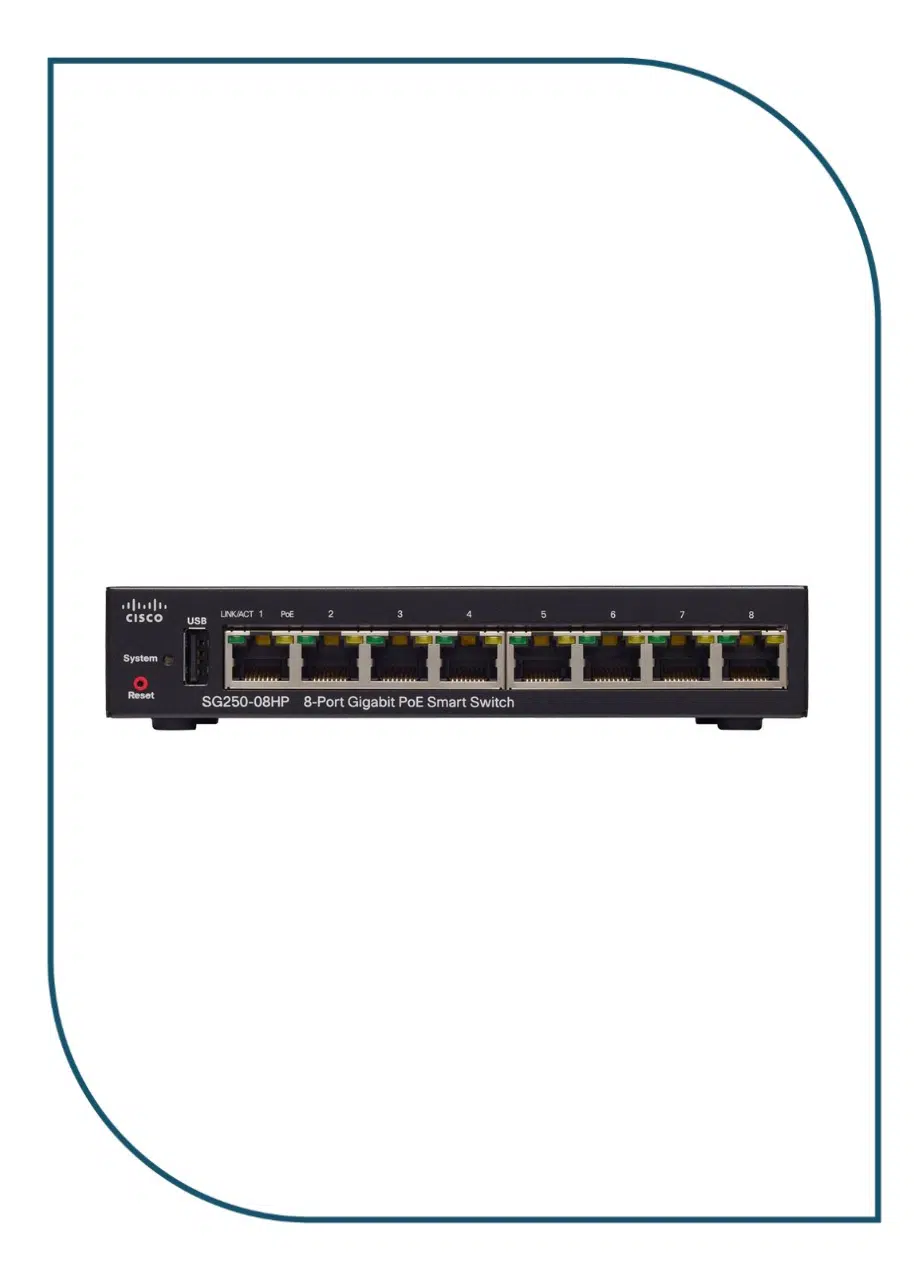

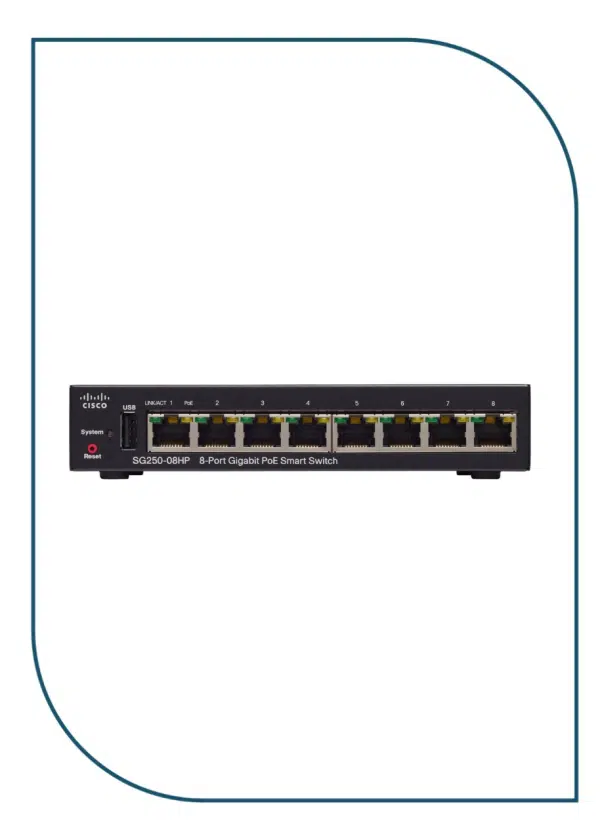

The Cisco SG250-08HP-K9-EU is a compact 8-port Gigabit Smart Managed PoE+ Switch built for small businesses, branch offices, retail stores, and IP surveillance deployments. It provides 8 Gigabit Ethernet ports, all supporting IEEE 802.3af/at PoE+, with a total 45W power budget for powering devices such as IP phones, wireless access points, and IP cameras using a single Ethernet cable.
Delivering a 16 Gbps switching capacity and 11.9 Mpps forwarding rate, the SG250-08HP ensures reliable performance for voice, video, and business applications. It supports advanced Layer 2 features including VLANs, Link Aggregation (LACP), QoS, IGMP Snooping, and comprehensive security, while also offering IPv4/IPv6 static routing for basic Layer 3 functionality.
Its fanless design provides silent operation, making it ideal for office desktops, retail environments, classrooms, and meeting rooms. Network administrators can manage the switch through an intuitive web interface, CLI, SNMP, SSH, and HTTPS, enabling simple deployment and secure administration. The compact desktop form factor can also be mounted in a rack using the included kit.
| Specification | Details |
|---|---|
| Model | SG250-08HP-K9-EU |
| Brand | Cisco |
| Product Series | Cisco 250 Series |
| Product Type | Smart Managed Gigabit PoE+ Switch |
| Network Layer | Layer 2 Smart Switch with Layer 3 Static Routing |
| Total Ports | 8 × 10/100/1000 Gigabit RJ45 |
| Uplink Ports | Shared Gigabit Ports (No Dedicated SFP Uplinks) |
| PoE Standard | IEEE 802.3af / IEEE 802.3at PoE+ |
| PoE Ports | 8 Ports |
| PoE Budget | 45 W |
| Switching Capacity | 16 Gbps |
| Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8,000 Entries |
| Packet Buffer | 12 MB |
| Jumbo Frame Support | Up to 9 KB |
| VLAN Support | Up to 256 Active VLANs |
| Link Aggregation | IEEE 802.3ad LACP |
| Routing Features | IPv4 Static Routing, IPv6 Static Routing |
| Security Features | 802.1X, ACLs, DHCP Snooping, DoS Prevention, Port Security |
| QoS | Layer 2–4 QoS, DSCP, WRR |
| Multicast | IGMP Snooping v1/v2/v3, MLD Snooping |
| Management | Web GUI, CLI, SNMP v1/v2c/v3, SSH, HTTPS, RMON |
| USB Port | 1 × USB Type-A |
| Cooling | Fanless |
| Mounting | Desktop or 1U Rack Mount |
| Power Supply | External AC Adapter |
| Dimensions | 160 × 128 × 30 mm |
| Weight | Approx. 0.54 kg |
| Operating Temperature | 0°C to +50°C |
