Description

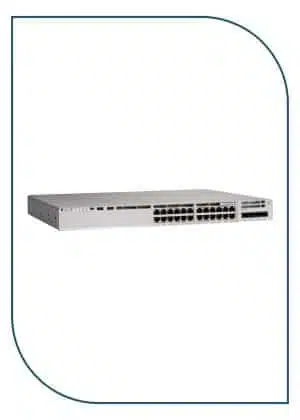

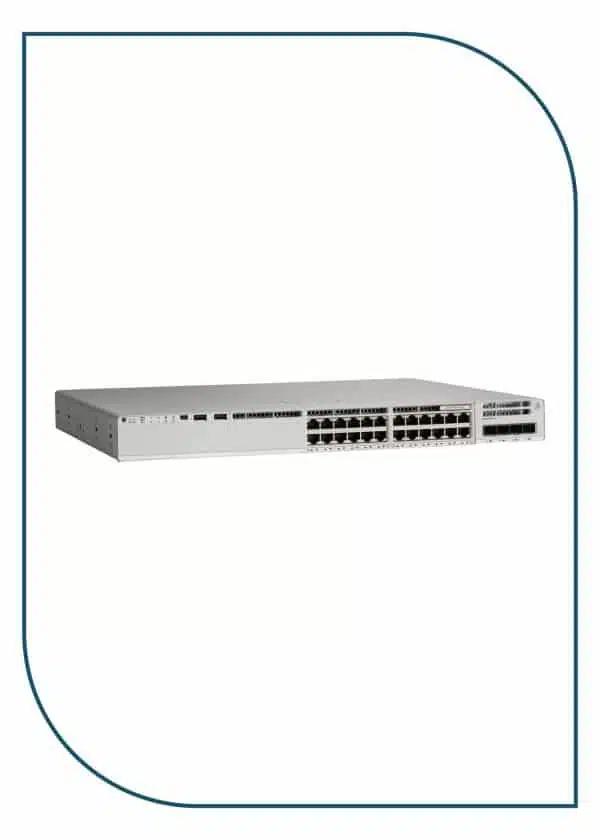

The Cisco C9200L-24T-4X-E is designed to provide secure, scalable, and resilient networking for modern enterprise environments. Equipped with 24 Gigabit Ethernet data ports and 4 fixed 10G SFP+ uplink interfaces, it offers high-performance connectivity for workstations, servers, wireless access points, and critical business applications.
As part of the Cisco Catalyst 9200L Series, this switch extends Cisco’s intent-based networking architecture with advanced Layer 3 capabilities, intelligent traffic management, network segmentation, QoS, IPv4/IPv6 routing, and enterprise-grade security. The included Network Essentials license simplifies deployment and management while delivering high operational efficiency.
The switch supports Cisco StackWise-160 technology, allowing multiple switches to operate as a single logical unit for easier management and improved redundancy. Advanced security technologies including MACsec encryption, 802.1X authentication, and ACL policies help protect enterprise infrastructures from modern cybersecurity threats.
Ideal for enterprise campuses, branch offices, educational institutions, healthcare facilities, hospitality environments, and corporate networks, the C9200L-24T-4X-E provides dependable performance, scalability, and future-ready networking capabilities.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco C9200L-24T-4X-E |
| Product Series | Cisco Catalyst 9200L Series |
| Software License | Network Essentials |
| Switch Type | Managed Layer 3 Switch |
| Ports | 24 × Gigabit Ethernet Data Ports |
| Uplink Ports | 4 × 10G SFP+ |
| PoE Support | No |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Layer Support | Layer 2 / Layer 3 |
| Routing Features | Static Routing, OSPF, RIP, IPv4/IPv6 |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Security Features | ACL, 802.1X, MACsec |
| IPv6 Support | Yes |
| Stacking Support | Cisco StackWise-160 |
| Stacking Bandwidth | Up to 160 Gbps |
| DRAM | 2 GB |
| Flash Memory | 4 GB |
| Management | CLI, SNMP, Cisco DNA Center |
| Power Supply | Internal |
| Mounting Type | Rack Mountable |
| Application | Enterprise Networks, Campus Networks, Branch Offices |
| Brand | Cisco |
Key Features
- 24 Gigabit Ethernet data ports
- 4 fixed 10G SFP+ uplinks
- Cisco Network Essentials software
- Enterprise Layer 3 managed switching
- Advanced MACsec encryption
- IPv4 and IPv6 routing support
- Cisco StackWise-160 scalability
- High-speed 10G fiber uplinks
- Centralized enterprise management
- Ideal for campus and branch deployments
