Description

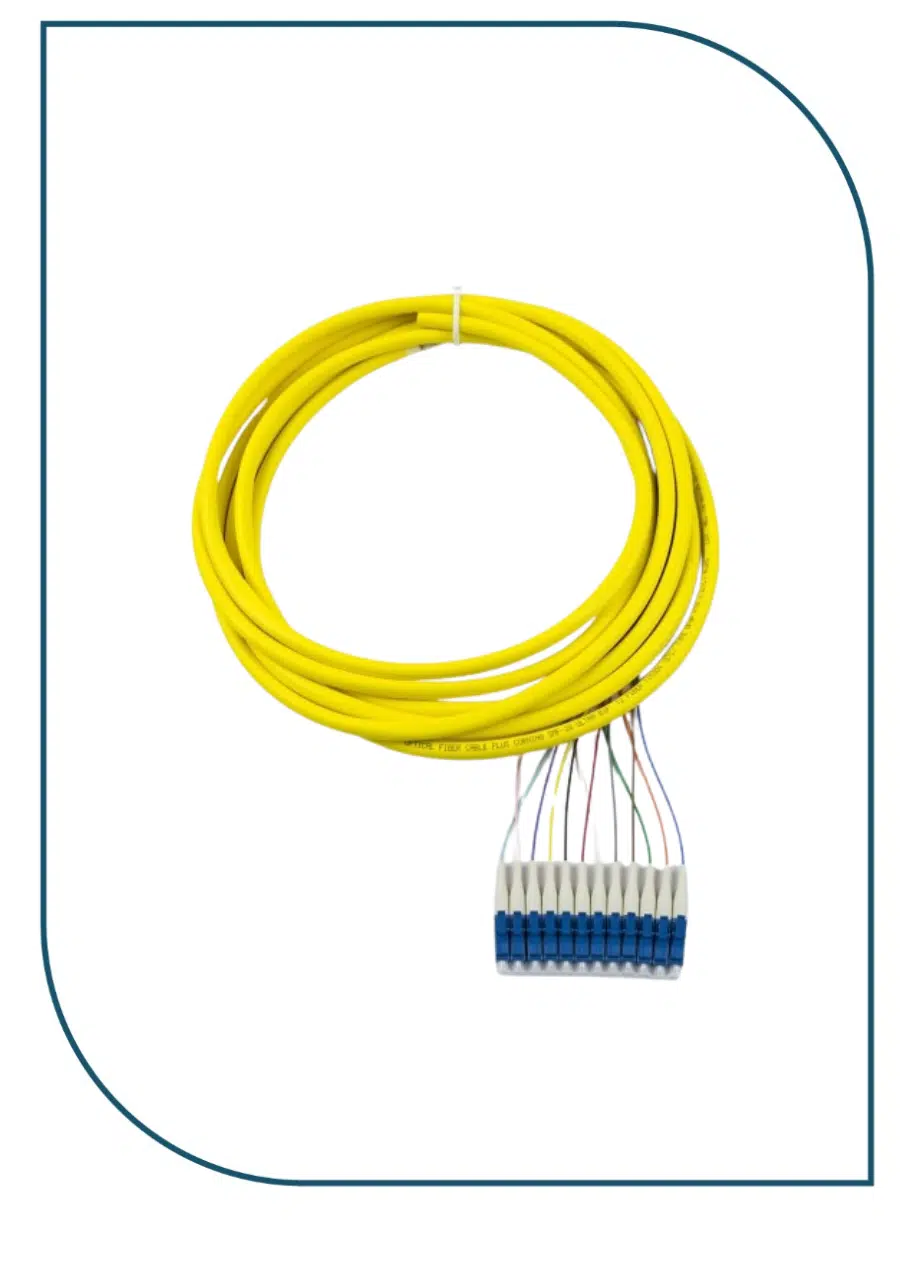

223343010

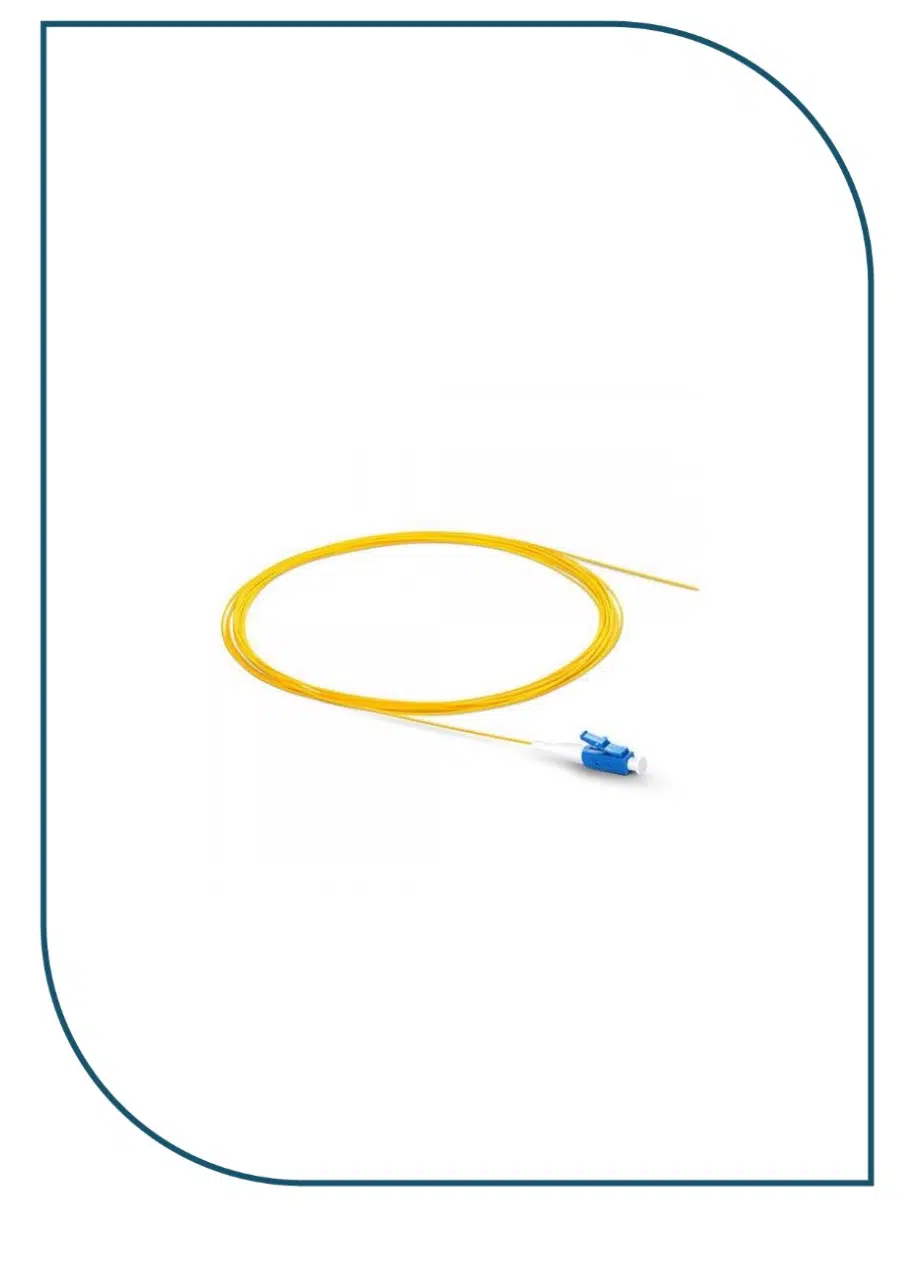

Fiber Optic Pigtail SM
Fiber optic patch cords are suited for equipment jumper cable, cross connects, and work area connections.
All patch cords are 100% factory tested to ensure performance to ANSI/TIA 568-D.3, ISO 11801:2002 and EN 50173-1 standards. With complete connector range of SC, ST, LC, FC, and also the different mode of fiber cables, consists of various combination for all-field applications.
FEATURES:
- Meets with TIA/EIA-568-C.3 and ISO/IEC 11801 specifications for insertion loss and return loss
- Environmentally stable in optical performance
- Provide total immunity to electrical interference
- RoHS compliant
APPLICATIONS:
- Telecom network
- CATV
- FTTx
- End equipment
- Local Area Network
- Test equipment
TYPICAL PERFORMANCE:
| Connector Type | ST | LC | SC | FC | |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB | |
| Return Loss | UPC | ≥50dB | ≥50dB | ≥50dB | ≥50dB |
| APC | ≥60dB | ≥60dB | ≥60dB | ≥60dB | |
| Interchange capability (1000 times) | <0.1dB | <0.1dB | <0.1dB | <0.1dB | |
| Impact1.5mm drop, 8 times | <0.1dB | <0.1dB | <0.1dB | <0.1dB | |
| Working temperature | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | |
ORDERING INFORMATION:
| Part No. | 22vwxyzzz |
| Description: | Premium Line fiber optical pigtail, SM 9/125um, simplex |
| v, mode | 3: G652D 6: G657A2 |
| w, O.D.& Sheath | 1: 0.9mm PVC 3: 0.9mm LSOH |
| x, connector type | 1: SC 2: ST 3: FC 4: LC |
| y, mode | 3: UPC 5: APC |
| zzz, length | 010: 1M 020: 2M 030: 3M |
