Description
S1T25A

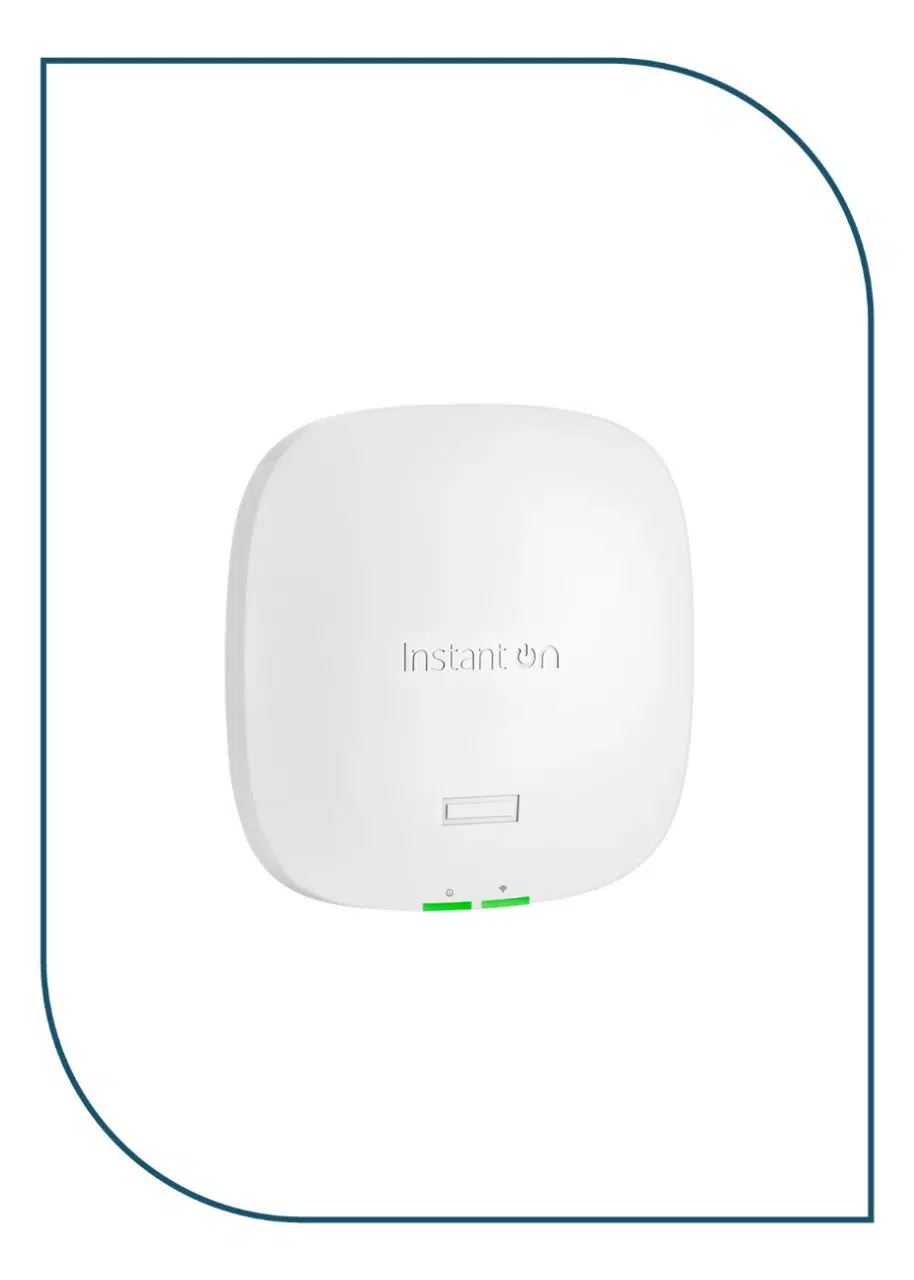

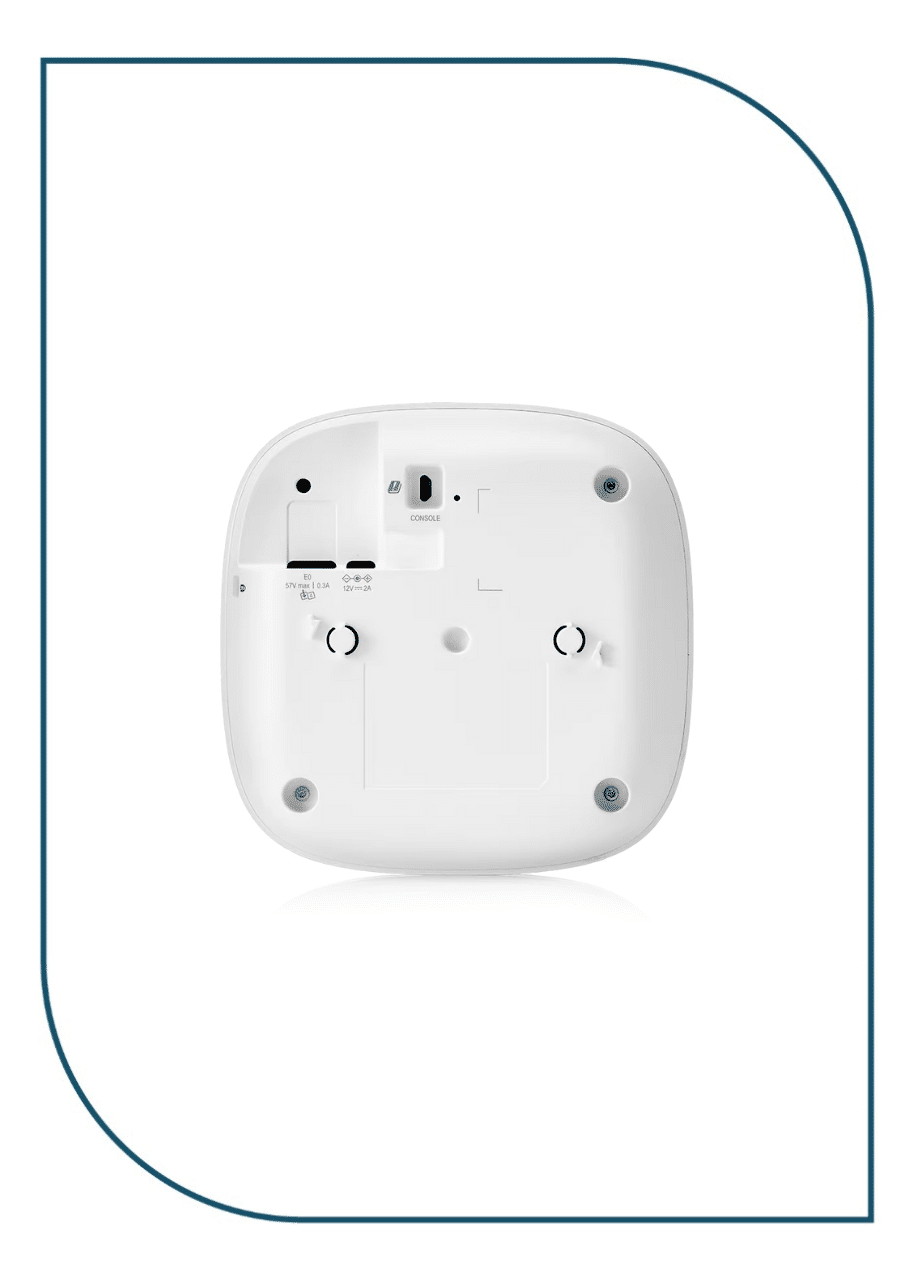

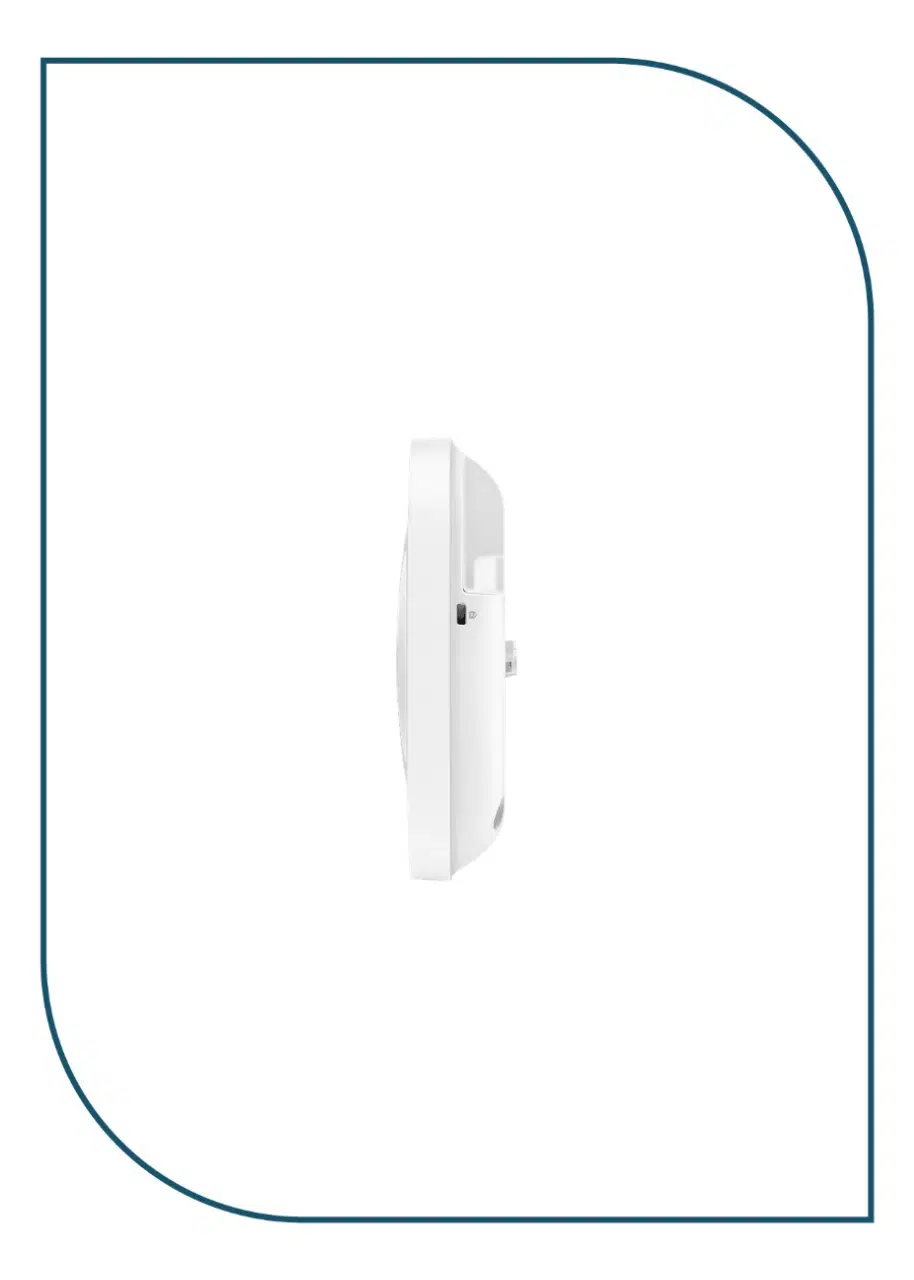

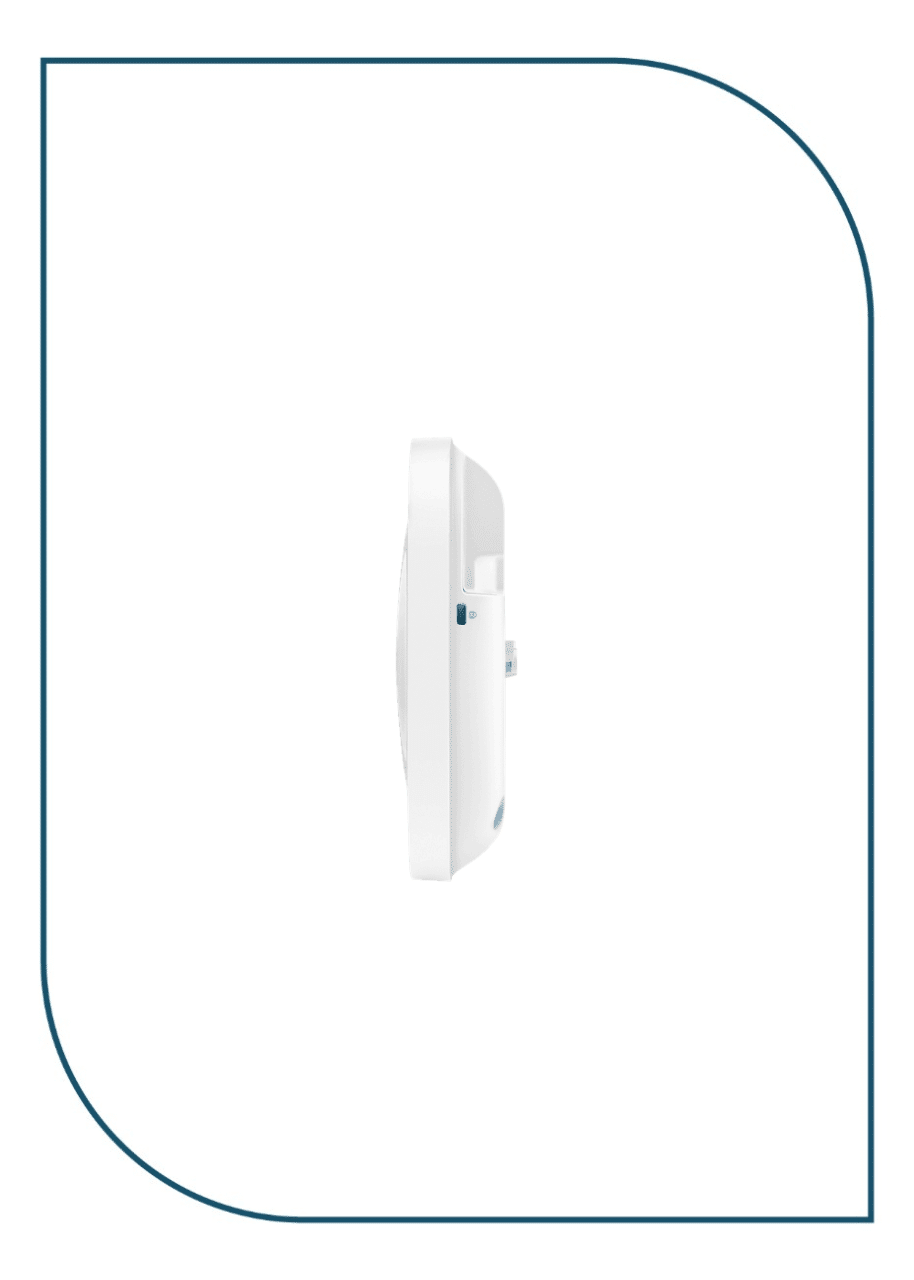

The HPE Networking Instant On AP32 supports the new 6E wireless protocol that broadcasts on the 6GHz band, which is reserved for Wi-Fi 6E-enabled devices, and offers higher capacity and capability for the devices. This higher capacity needs a strong backhaul, so the HPE Networking Instant On AP32 comes with a 2.5GbE uplink port and PoE to make connectivity and power easy. With a 2×2 antenna array supporting 2 spatial streams, the HPE Networking Instant On AP32 provides robust connectivity for up to 75 devices and 2.8Gbps of wireless throughput. In the HPE Networking Instant On mobile app, choose to broadcast the 5GHz and 6GHz bands to achieve faster throughput speed, or switch to 2.4GHz and 6GHz for impressive range for modern laptops or smartphones.
| Item | Specification |
|---|---|
| Device Name | HPE Networking Instant On AP32 (EG) |
| Wireless Standard | Tri-Band Wi-Fi 6E (2.4 GHz + 5 GHz + 6 GHz) |
| MIMO Configuration | 2×2:2 MIMO per band |
| Max Data Rates | – 2.4 GHz: up to 574 Mbps – 5 GHz: up to 1.2 Gbps – 6 GHz: up to 2.4 Gbps |
| Combined Throughput | Approx. 4.2 Gbps (but only 2 bands active at a time) |
| Max Concurrent Clients | Up to 75 clients (recommended) |
| Ethernet Uplink | 1 × 2.5G Ethernet (RJ45) |
| PoE Support | PoE 802.3at (Class 4) and 802.3bt compliant |
| Power Consumption | – PoE: Up to 12.9 W – DC: Up to 11 W |
| Power Supply | Not included (sold separately – power adapter or PoE injector required) |
| Management | Cloud-managed via Instant On mobile app or web portal (no subscription needed) |
| Mesh & Network Features | Smart Mesh, Multiple SSIDs, VLAN support, ClientMatch |
| Security Features | WPA2/WPA3, Enhanced Open, Built-in firewall, Access control |
| Mounting Options | Ceiling or wall mount (mounting kit included) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions (W × D × H) | 160 × 160 × 37 mm (6.3 × 6.3 × 1.45 in) approx. |
| Weight | Approx. 500 g (1.1 lb) |
| Warranty | 2-year warranty with 24/7 support |
